EE130904D
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | EE130904D |
| Bearing Part Number | EE130904D-131400 |
Characteristics |
|
| System of Measurement | Inch |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered |
| Type | Cones |
| Seal Type | Open |
| For Load Direction | Combined |
| Construction | Double Row |
| Series | 130000 |
| ABEC Rating | ABEC-1 |
Dimensions |
|
| Bore Dia | 9" |
| Bore Dia Tolerance | +0.001" to 0 |
| Double Cone Width | 5" |
| Double Cone Width Tolerance | +0.003" to -0.01 |
| Cone Backface ToClear Radius | 0.06" |
| Cone Frontface Backing Diameter | 9.72" |
| Cone Backface Backing Diameter | 9.72" |
| Cage Cone Frontface Clearance | 0.05" |
Material |
|
| Roller Material | Chrome Steel |
| Cage Material | Steel |
Performance |
|
| Static Radial Load | 314000 lbf |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| Dynamic Thrust Rating(90 Million Revolutions) | 26200 lbf |
| Dynamic Radial Rating(Two Row 90 Million Revolutions) | 80800 lbf |
| Dynamic Radial Rating(90 Million Revolutions) | 46400 lbf |
| Dynamic Radial Rating(Two Row 1 Million Revolutions) | 312000 lbf |
| Dynamic Radial Rating(1 Million Revolutions) | 179000 lbf |
| Temperature Range | -30° to 110 °C |
Properties |
|
| RoHS | Compliant |
| REACH | Compliant |

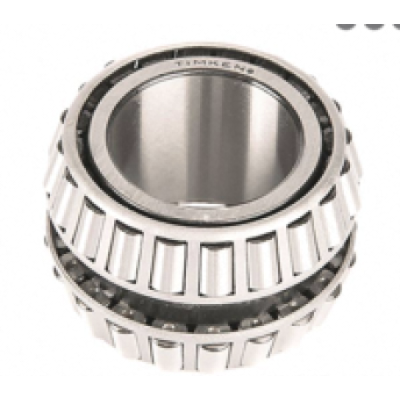

Design Features of EE130904D Bearing
EE130904D bearing features two tapered roller assemblies combined in a single cone, providing stable support for heavy radial and axial loads. EE130904D double cone width is 5". Its bore dia is 9". This design enhances load distribution, making it ideal for applications requiring precise alignment and durability.
What Benefits Can EE130904D Bearing Provide?
- High Load Capacity: It supports heavy radial and axial loads, making it suitable for demanding applications.
- Improved Stability: The dual tapered rollers enhance balance and reduce deflection under load.
- Durability: Its robust design ensures longer life and less maintenance.
- Precise Alignment: The cone structure aids in accurate alignment, which reduces wear on machinery.
What Can EE130904D Bearing Be Used for?
- Automotive: Commonly found in wheel hubs, transmissions, and differentials for supporting heavy loads.
- Industrial Machinery: Ideal for conveyor systems, gearboxes, and other equipment requiring high load capacity and stability.
- Double Row Equipment: Used in heavy machinery like excavators and bulldozers to handle demanding conditions.
- Mining Equipment: Suitable for harsh environments due to its durability and ability to support heavy radial and axial loads.
- Aerospace: Utilized in landing gear and other components where precision and reliability are crucial.
