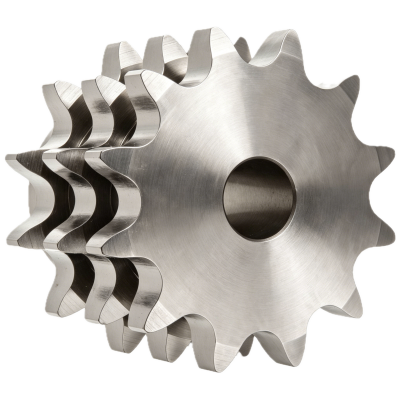

E08B24
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | E08B24 |
Brand: LILY  |
Interchangeable With: Martin |
Characteristics |
|
| System of Measurement | Metric |
| Number Of Teeth | 24 |
| For Roller Chain Trade Size | 08B-3 |
| Type | B |
Dimensions |
|
| Pitch Diameter | 97.3 mm |
| Bore Dia | 20 mm |
| Bore Max | 50 mm |
| Chain Pitch | 12.7 mm |
| Hub Dia | 75 mm |
| Hub Length Thru | 55 mm |
Properties |
|
| WT.lb(APPROX) | 2.44 kg |
Design Features of E08B24 Sprockets
E08B24 features a triple-strand design that provides superior load-carrying capacity and strength for demanding industrial applications. Manufactured to ISO 606 and DIN 8187 standards, it ensures precise dimensions, interchangeability, and global compatibility. The 0.500" (12.70 mm) pitch balances compactness with robust power transmission. Made from heat-treated carbon or alloy steel, the chain offers excellent tensile strength, wear resistance, and fatigue durability. Precision-machined rollers promote smooth engagement with sprockets, reducing friction and extending service life.
What Benefits Can E08B24 Sprockets Provide?
- Superior Load Capacity: The triplex (triple-strand) design offers significantly higher strength and torque transmission compared to simplex or duplex chains, making it ideal for heavy-duty applications.
- Enhanced Durability: Constructed from heat-treated materials, the chain provides excellent wear resistance and fatigue life for reliable, long-term performance under continuous operation.
- Compact High-Performance Design: The 12.70 mm pitch allows for efficient power transmission in space-constrained machinery without compromising strength or durability.
- Corrosion Resistance: Available in nickel-plated or stainless steel variants, it performs reliably in wet, corrosive, or washdown environments, extending service life and reducing maintenance.
What Can E08B24 Sprockets Be Used for?
- Heavy-Duty Conveyor Systems: Perfect for driving large or heavily loaded conveyor belts in industries such as manufacturing, mining, and bulk material handling.
- Industrial Machinery: Suitable for high-torque equipment like crushers, mixers, presses, and other heavy machinery requiring reliable power transmission.
- Automated Production Lines: Used in synchronized, high-load automation systems that demand consistent and durable chain performance.
- Agricultural and Construction Equipment: Ideal for compact, high-strength power transmission in machinery exposed to harsh conditions, dirt, and moisture.
