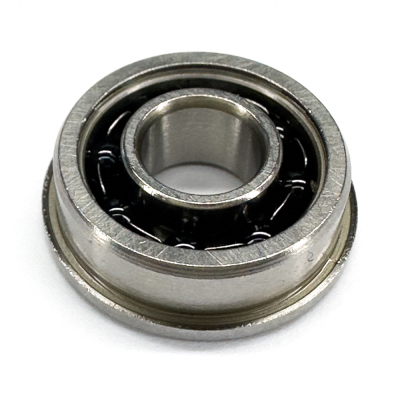

DDRIF-5
Part Number | DDRIF-5 |
Brand: LILY | |
Equivalent: NMB |
System of Measurement | Inch |
Bearing Type | Ball |
For Load Direction | Radial |
Construction | Single Row |
Seal Type | Open |
Bore Dia | 0.09375" |
Bore Dia Tolerance | -0.0003" to 0" |
Outer Dia | 0.3125" |
Outer Dia Tolerance | -0.0003" to 0" |
Width | 0.1094" |
Width Tolerance | -0.005" to 0" |
Flange Outer Dia | 0.359" |
Flange Thickness | 0.023" |
Ring Material | Stainless Steel |
Ball Material | Stainless Steel |
Cage Material | Stainless Steel |
Dynamic Radial Load | 95 lbf |
Static Radial Load | 29 lbf |
Max Speed (X1000 rpm) | 54 |
Lubrication | Required |
Temperature Range | -86 to 230 °F |
Shaft Mount Type | Press Fit |
ABEC Rating | ABEC1 |
Radial Clearance Trade No | MC3 |
Radial Clearance | 0.00008" to 0.0005" |
ROHS | Compliant |
REACH | Compliant |
Ball Dia | 0.06252" |
Ball Qty | 6 |
Weight | 0.67 g |
DDRIF-5 Inch Size NMB Flanged Ball Bearings have deep groove geometry for high speeds and supporting both radial and axial loads. This DDRIF-5 Inch Size NMB Flanged Ball Bearings are for use in applications that involve combined radial and axial loads and a need for high running accuracy at high rotational speeds. For instance, DDRIF-5 Inch Size NMB Flanged Ball Bearings are often used in motors, ATMs as well as Card Readers. In Food & Beverage Industry, DDRIF-5 is also popular. More applications about DDRIF-5 are as follows.
Typical Applications
Motors,Flow Meters,Medical Instruments,Vacuum Pumps,Robotics Industry,Crossbow,Food & Beverage Industry,Automation & Industry,Anemometer,ATMs & Card Readers,Galvanometers,Gas Meters,Industrial Encoders,Industrial Meters,Optical Encoders,Plastic Card Printers,Surveillance Systems,Fuel controls,Gyros, synchros and servos,Cryogenic coolers,Pulmonary assist devices,Clocks,Instrumentation,Drones and model,Fishing reel
General Selection Factors
Several factors must be considered for choosing NMB bearings. These factors include the ring material, design, shields and seals, cage, Annual Bearing Engineering Committee (ABEC) grade, radial play, and lubricant. Miniature bearings are available in open, sealed and shielded configurations. Seals and shields are used in miniature bearings (specifically ball bearings) to retain lubricants and prevent particulate contamination from reaching critical surfaces. Seals are used where minimal light contact is offered. Seals for miniature bearings provide deterrence to particulate contamination, but increase torque and limit operating speeds. Shields are used in most applications.
