Carter Cam Followers Equivalent
/
Xtenda Stainless
/

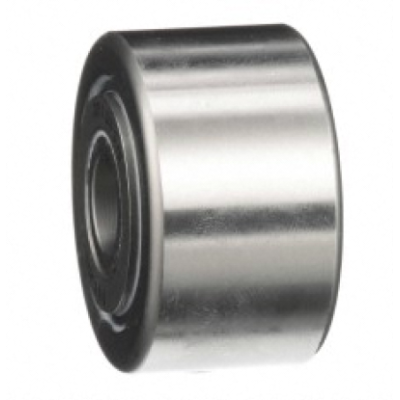

CSY-S -Standard Stainless Crowned Sealed Yoke Roller
/
CSY-72-S
CSY-72-S
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
| Part Number | CSY-72-S |
Brand: LILY  |
Interchangeable With: Carter |
| System of Measurement | Inch |
| Roller O.d. | 2.25 |
| Roller Width | 1.25" |
| Crown Radius | 24" |
| Bore Diameter | 0.625 |
| Overall Width | 1.3125" |
| Oil Hole Diameter | 1/8" |
| Min. Boss Diameter | 1.2031 |
| Shaft Diameter(Ø) Push Fit | 0.6245 |
| Shaft Diameter(Ø) Drive Fit | 0.6251 |
| Shaft Diameter(Ø) Press Fit | 0.6255 |
| Max Static Capacity (lbf) | 17600 lbf |
| Basic Dynamic Rating (lbf) | 7270 lbf |
| Limiting Speed (rpm) | 1300 |
| For Load Direction | Radial |
| Roller Shape | Crowned |
| Internal Construction | Full Complement |
| Type | Yoke Type |
| Seal Type | Sealed |
| Roller Material | Stainless Steel |
| Roller Dia | 2.25" |
| Yoke Bore Dia | 0.625" |
| Shoulder Dia | 1.2031" |
| Static Radial Load | 17600 lbf |
| Dynamic Radial Load | 7270 lbf |
| Max Speed | 1300 rpm |
| RoHS | Compliant |
| REACH | Compliant |
