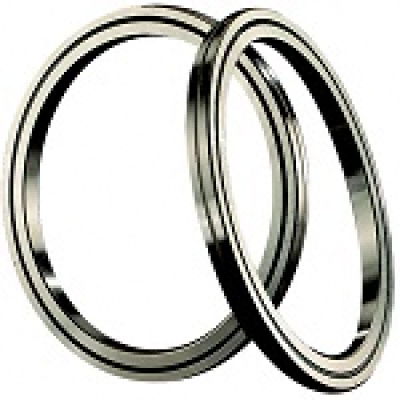

CRBS608VUU
Part Number | CRBS608VUU |
System of Measurement | Metric |
Bearing Type | Roller |
For Load Direction | Combined |
Construction | Single Row |
Seal Type | Double Seal |
Bore Dia | 60 mm |
Outer Dia | 76 mm |
Width | 8 mm |
R(min) | 0.4 mm |
Holes | Without Holes |
Ring Material | Steel |
Roller Material | Steel |
Mounting Dimensions(da) | 64 mm |
Mounting Dimensions(Da) | 71 mm |
Basic Load Rating C | 7.600 kN |
Basic Load Rating Co | 11.700 kN |
Lubrication | Required |
Shaft Mount Type | Press Fit |
Temperature Range | 0 -230 °F |
ABEC Rating | ABEC5(Available in ABEC7/9) |
RoHS | Compliant |
REACH | Compliant |
Weight | 0.094 Kg |
