CRBFV8022A
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | CRBFV8022A |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Crossed |
| Seal Type | Open |
| Shaft Mount Type | Press Fit |
| For Load Direction | Combined |
| Construction | Single Row |
| ABEC Rating | ABEC5(Available in ABEC7/9) |
| Holes | With Holes |
| Inner Ring Mounting Hole | 10- φ 5.5 through φ 9.5 counter bore depth 5.4 |
| Outer Ring Mounting Hole | 10-φ5.5 through φ9.5 counter bore depth 5.4 |
| Inner Ring Mounting Hole | 10- φ 5.5 through φ 9.5 counter bore depth 5.4 |
| Outer Ring Mounting Hole | 10-φ5.5 through φ9.5 counter bore depth 5.4 |
Dimensions |
|
| Bore Dia | 80 mm |
| Outer Dia | 165 mm |
| Width | 22 mm |
| Inner Ring PCD1 | 97 mm |
| Outer Ring PCD2 | 148 mm |
Material |
|
| Ring Material | Steel |
| Roller Material | Steel |
Performance |
|
| Basic Load Rating C | 51.1 kN |
| Basic Load Rating Co | 72 kN |
| Temperature Range | 0 -230 °F |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 2.6 kg |
NOTE：All other trademarks are the property of their respective owners.
All other trademarks mentioned herein are used for the purpose of compatibility description and product identification only. Lily Bearing is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

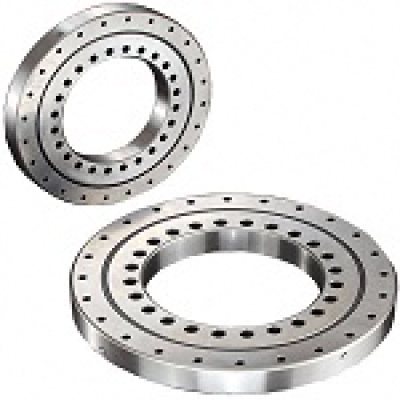

Design Features of CRBFV8022A
CRBFV8022A features a compact design with crossed rollers arranged at right angles, ensuring smooth and stable rotation. CRBFV8022A outer dia is 165 mm. Its bore dia is 80 mm. This design allows it to handle complex loads, including radial, axial, and moment loads, while maintaining high accuracy and rigidity in applications.
What Benefits Can CRBFV8022A Provide?
- High Load Capacity: It can handle radial, axial, and moment loads simultaneously, making it versatile for various applications.
- Compact Design: Its thin profile allows for space-saving installation while still maintaining strength and rigidity.
- High Precision: The crossed roller arrangement ensures smooth rotation with minimal deflection, providing excellent accuracy.
- Stable Operation: It maintains stability even under complex load conditions, enhancing reliability in demanding environments.
- Reduced Maintenance: With durable construction, it offers long service life, reducing the need for frequent replacements or repairs.
What Can CRBFV8022A Be Used for?
- Industrial Robots: For joints and rotating components that require smooth and accurate movement.
- Machining Centers: In turntables and spindles, where high precision and load capacity are essential.
- Medical Equipment: Such as MRI machines and CT scanners, where precise positioning is crucial.
- Semiconductor Manufacturing: In wafer-handling systems and inspection devices for accurate and stable movement.
- Aerospace Applications: For components like radar systems and satellite positioning mechanisms that require reliable performance under complex loads.
