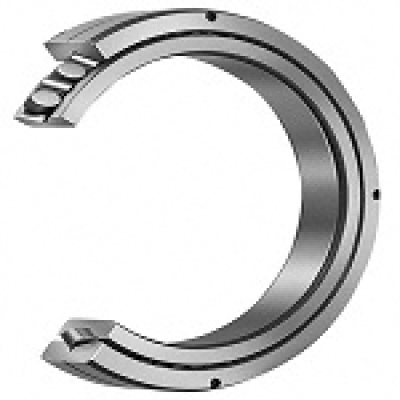

CRBC800100
| Part Number | CRBC800100 |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Crossed |
| For Load Direction | Combined |
| Construction | Single Row |
| Seal Type | Open |
| Bore Dia | 800 mm |
| Outer Dia | 1030 mm |
| Width | 100 mm |
| R(min) | 4 mm |
| Holes | Without Holes |
| Ring Material | Steel |
| Roller Material | Steel |
| Basic Load Rating C | 936 kN |
| Basic Load Rating Co | 2 040 kN |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | 0 -230 °F |
| ABEC Rating | ABEC5(Available in ABEC7/9) |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 247 Kg |
})
INTERCHANGE
The LILY bearing part series CRBC800100 is a potential replacement for these common bearing part numbers.
LILY
IKO
LCRBC800100
CRBC800100
