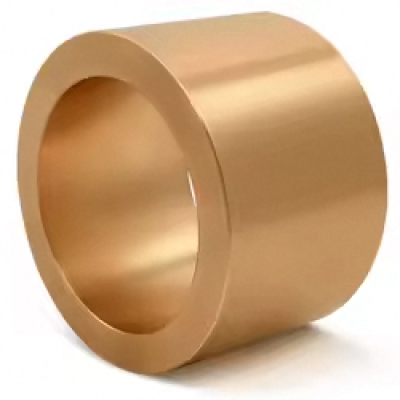

CJCETEI
| Part Number | CJCETEI |
| System of Measurement | Inch |
| Bearing Type | Plain |
| Plain Bearing Type | Sleeve |
| For Load Direction | Radial |
| For Shaft Diameter | 1/2" |
| Bore Dia | 0.5005" |
| Bore Dia Tolerance | 0" to 0.0012" |
| For Housing ID | 3/4" |
| Outer Dia | 0.752" |
| Outer Dia Tolerance | 0" to 0.001" |
| Length | 1" |
| Length Tolerance | -0.005" to 0.005" |
| Dynamic Radial Load | 1950 lbf |
| Static Radial Load | 1950 lbf |
| Max Speed (X1000 rpm) | 0.12 |
| Material | 954 Aluminum-Bronze |
| Lubrication | Required |
| Lubrication Method | Grooved |
| For Shaft Type | Round |
| Shaft Mount Type | Slip Fit |
| Temperature Range | -350° to 500° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY bearing part series CJCETEI is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CJCETEI
