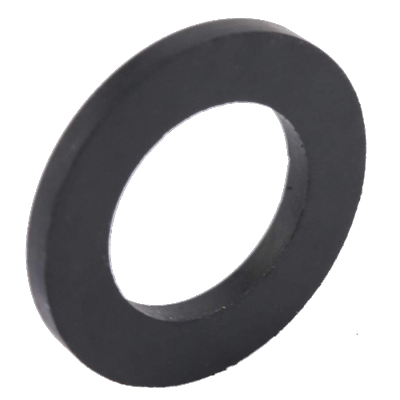

CIHJTF
Part Number | CIHJTF |
System of Measurement | Inch |
Bearing Type | Plain |
Plain Bearing Type | Thrust |
For Load Direction | Thrust |
For Shaft Diameter | 1/2" |
Bore Dia | 0.5" |
Bore Dia Tolerance | 0" to 0.01" |
Outer Dia | 1" |
Outer Dia Tolerance | -0.01" to 0.01" |
Thickness | 1/8" |
Thickness Tolerance | -0.005" to 0.005" |
Dynamic Thrust Load | 650 lbf |
Material | 863 Iron-Copper |
Lubrication | Lubricated |
Lubrication Method | Embedded |
Lubricant | SAE 90 Oil |
For Shaft Type | Round |
Temperature Range | -15° to 300° F |
RoHS | Compliant |
REACH | Compliant |
INTERCHANGE
The LILY bearing part series CIHJTF is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CIHJTF
