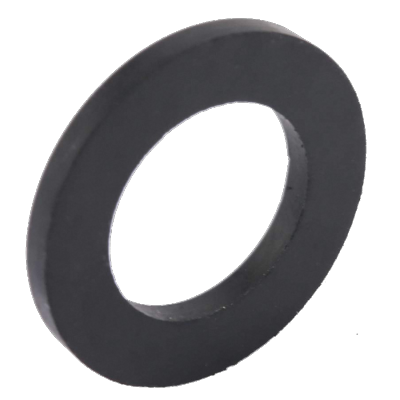

CIHJTDF
| Part Number | CIHJTDF |
| System of Measurement | Inch |
| Bearing Type | Plain |
| Plain Bearing Type | Thrust |
| For Load Direction | Thrust |
| For Shaft Diameter | 7/8" |
| Bore Dia | 0.8855" |
| Bore Dia Tolerance | 0" to 0.01" |
| Outer Dia | 1 1/2" |
| Outer Dia Tolerance | -0.01" to 0.01" |
| Thickness | 1/16" |
| Thickness Tolerance | -0.005" to 0.005" |
| Dynamic Thrust Load | 1700 lbf |
| Material | 863 Iron-Copper |
| Lubrication | Lubricated |
| Lubrication Method | Embedded |
| Lubricant | SAE 90 Oil |
| For Shaft Type | Round |
| Temperature Range | -15° to 300° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY bearing part series CIHJTDF is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CIHJTDF
