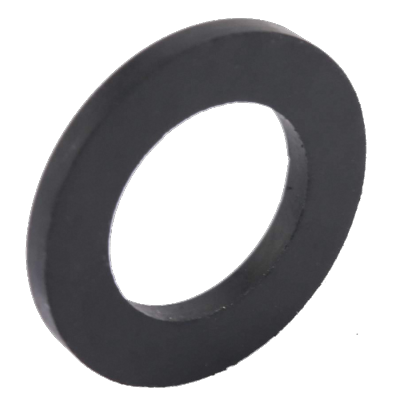

CIHCTDE
| Part Number | CIHCTDE |
| System of Measurement | Inch |
| Bearing Type | Plain |
| Plain Bearing Type | Thrust |
| For Load Direction | Thrust |
| For Shaft Diameter | 1 3/4" |
| Bore Dia | 1.75" |
| Bore Dia Tolerance | -0.001" to 0.001" |
| Outer Dia | 2 7/16" |
| Outer Dia Tolerance | 0.002" to 0.003" |
| Thickness | 1/8" |
| Thickness Tolerance | -0.005" to 0.005" |
| Dynamic Thrust Load | 10K lbf greater |
| Material | 954 Aluminum-Bronze |
| Lubrication | Required |
| For Shaft Type | Round |
| Temperature Range | -350° to 500° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY bearing part series CIHCTDE is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CIHCTDE
