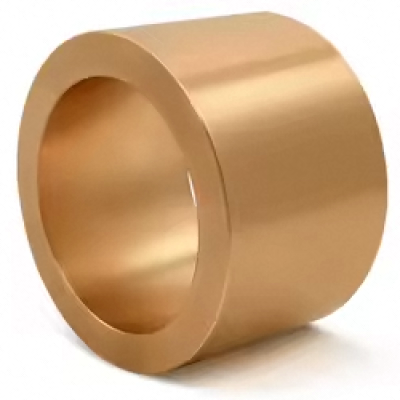

CIGITBDB
Part Number | CIGITBDB |
System of Measurement | Inch |
Bearing Type | Plain |
Plain Bearing Type | Sleeve |
For Load Direction | Radial |
For Shaft Diameter | 1/2" |
Bore Dia | 0.501" |
Bore Dia Tolerance | 0" to 0.001" |
For Housing ID | 1" |
Outer Dia | 1.003" |
Outer Dia Tolerance | 0" to 0.001" |
Length | 1" |
Length Tolerance | -0.01" to 0.01" |
Dynamic Radial Load | 1100 lbf |
Static Radial Load | 1100 lbf |
Max Speed (X1000 rpm) | 0.12 |
Material | 863 Iron-Copper |
Lubrication | Lubricated |
Lubrication Method | Embedded |
Lubricant | SAE 90 Oil |
For Shaft Type | Round |
Shaft Mount Type | Press Fit |
Temperature Range | -15° to 300° F |
RoHS | Compliant |
REACH | Compliant |
INTERCHANGE
The LILY bearing part series CIGITBDB is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CIGITBDB
