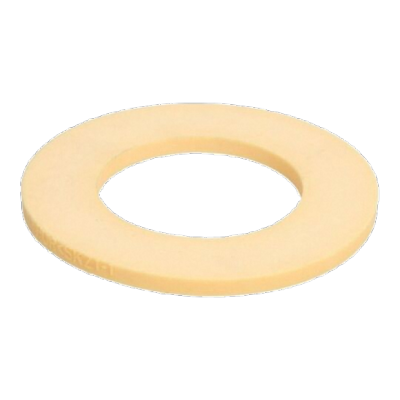

CIGGTBF
| Part Number | CIGGTBF |
| System of Measurement | Inch |
| Bearing Type | Plain |
| Plain Bearing Type | Thrust |
| For Load Direction | Thrust |
| For Shaft Diameter | 1" |
| Bore Dia | 1" |
| Bore Dia Tolerance | 0" to 0.005" |
| Outer Dia | 2" |
| Outer Dia Tolerance | -0.003" to 0.003" |
| Thickness | 1/8" |
| Thickness Tolerance | -0.003" to 0.003" |
| Dynamic Thrust Load | 150 lbf |
| Material | UHMW Plastic |
| Lubrication | Not Required |
| For Shaft Type | Round |
| Temperature Range | -100° to 180° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY bearing part series CIGGTBF is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CIGGTBF
