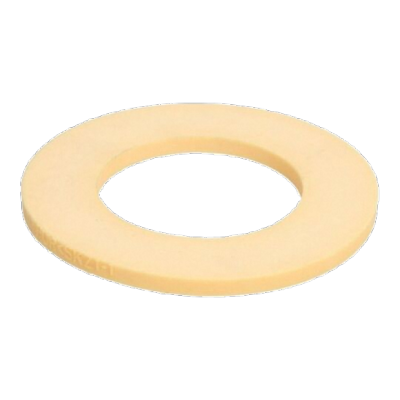

CIFFTBB
Part Number | CIFFTBB |
System of Measurement | Inch |
Bearing Type | Plain |
Plain Bearing Type | Thrust |
For Load Direction | Thrust |
For Shaft Diameter | 1 1/2" |
Bore Dia | 1.5015" |
Bore Dia Tolerance | 0" to 0.0008" |
Outer Dia | 2 1/2" |
Outer Dia Tolerance | 0.002" to 0.003" |
Thickness | 1/8" |
Thickness Tolerance | -0.005" to 0.005" |
Dynamic Thrust Load | 8950 lbf |
Material | 660 Leaded Bronze |
Lubrication | Lubricated |
Lubrication Method | Plugged |
Lubricant | Graphite |
For Shaft Type | Round |
Temperature Range | -350° to 450° F |
RoHS | Compliant |
REACH | Compliant |
INTERCHANGE
The LILY bearing part series CIFFTBB is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CIFFTBB
