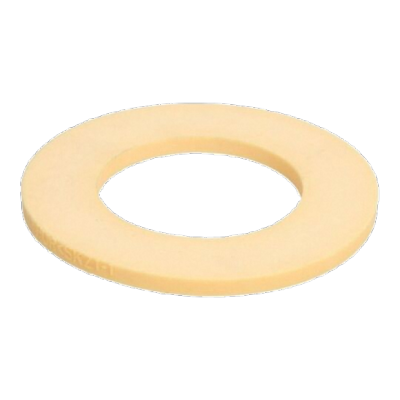

CHJGTBI
| Part Number | CHJGTBI |
| System of Measurement | Metric |
| Bearing Type | Plain |
| Plain Bearing Type | Thrust |
| For Load Direction | Thrust |
| For Shaft Diameter | 8 mm |
| Bore Dia | 8.2 mm |
| Bore Dia Tolerance | 0 mm to 0.25 mm |
| Outer Dia | 15.8 mm |
| Outer Dia Tolerance | -0.25 mm to 0 |
| Thickness | 1.5mm |
| Thickness Tolerance | -0.06mm to 0.06mm |
| Dynamic Thrust Load | 4 lbf |
| Material | PTFE Plastic |
| Lubrication | Not Required |
| For Shaft Type | Round |
| Temperature Range | -450° to 500° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY bearing part series CHJGTBI is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CHJGTBI
