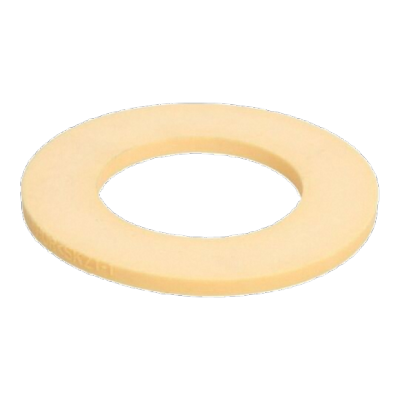

CHJGTBB
| Part Number | CHJGTBB |
| System of Measurement | Inch |
| Bearing Type | Plain |
| Plain Bearing Type | Thrust |
| For Load Direction | Thrust |
| For Shaft Diameter | 1/4" |
| Bore Dia | 0.25" |
| Bore Dia Tolerance | 0" to 0.005" |
| Outer Dia | 5/8" |
| Outer Dia Tolerance | -0.003" to 0.003" |
| Thickness | 1/16" |
| Thickness Tolerance | -0.007" to 0.007" |
| Dynamic Thrust Load | 13 lbf |
| Material | PTFE Plastic |
| Lubrication | Not Required |
| For Shaft Type | Round |
| Temperature Range | -350° to 500° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY bearing part series CHJGTBB is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CHJGTBB
