CHAGTFEB

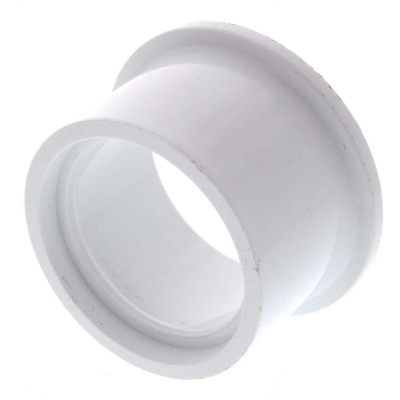

CHAGTFEB Ultra-Low-Friction Dry-Running Flanged Sleeve Bearings
Part Number CHAGTFEB
System of Measurement Metric
Bearing Type Plain
Plain Bearing Type Flanged
For Load Direction Combined Radial and Thrust
For Shaft Diameter 14mm
Bore Dia 14 mm
Bore Dia Tolerance 0 mm to 0.21 mm
For Housing ID 18mm
Outer Dia 18 mm
Outer Dia Tolerance 0 to 0.11 mm
Length 22mm
Length Tolerance -0.13mm to 0.13mm
Flange OD 22mm
Flange Thickness 2mm
Dynamic Radial Load 55 lbf
Static Radial Load 55 lbf
Dynamic Thrust Load 25 lbf
Max Speed (X1000 rpm) 0.06
Material PTFE Plastic
Lubrication Not Required
For Shaft Type Round
Shaft Mount Type Slip Fit
Temperature Range -200° to 450° F
RoHS Compliant
REACH Compliant
INTERCHANGE
The LILY bearing part series CHAGTFEB is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CHAGTFEB

2706T541
