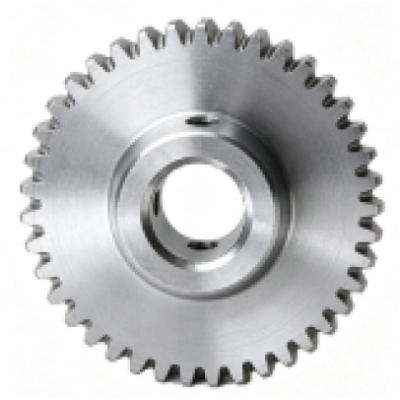

2664N311
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | CGGENDBB |
| System of Measurement | Metric |
| Gear Type | Spur |
| Pressure Angle | 20 ° |
| Component | Gear |
| Bore Type | Round |
| Module | 0.5 |
| Number Of Teeth | 15 |
| Pitch Diameter | 7.5 mm |
| OD | 8.5 mm |
| Face Width | 5 mm |
| Overall Width | 16 mm |
| Bore Dia | 3 mm |
| Material | Black-Oxide 1045 Carbon Steel |
| Teeth Heat Treatment | Not Hardened |
| Hub Diameter | 8.5 mm |
| Hub Width | 11 mm |
| Set Screw Thread Size | M3 |
| Includes | Set Screw |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (07/08/2021, 219 SVHC) Compliant |
NOTE：All other trademarks are the property of their respective owners.
All other trademarks mentioned herein are used for the purpose of compatibility description and product identification only. Lily Bearing is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
Design Features of CGGENDBB Gear
CGGENDBB offer higher load capacity and stronger tooth profiles compared to lower-angle gears. They are standardized to ISO metric gear specifications for easy interchangeability and consistent performance across global applications. CGGENDBB hub width is 11 mm. Its face width is 5 mm. Its overall width is 16 mm. Designed to mesh precisely with other 20° pressure angle metric gears or racks, simplifying system integration and ensuring smooth, reliable operation.
What Benefits Can CGGENDBB Gear Provide?
- Higher Load Capacity: The 20°pressure angle provides a stronger tooth base, allowing the gear to transmit greater torque with improved reliability.
- Enhanced Durability: Thicker, more robust teeth improve wear resistance and reduce the likelihood of failure in demanding or continuous-use applications.
- Smooth Operation: Lower sensitivity to backlash ensures precise, quiet motion control in high-speed or high-accuracy systems.
What Can CGGENDBB Gear Be Used for?
CGGENDBB Gears are mainly used in the industrial, automotive, aerospace, and robotics industries:
- Industrial machinery: Such as conveyors, gearboxes, and automation equipment.
- Automotive systems: Including transmissions, steering components, and differential units.
- Aerospace and defense: For precise motion control in actuators and flight mechanisms.
- Robotics and mechatronics: Where compact size and high torque transmission are essential.
- Medical and laboratory equipment: Requiring quiet, precise, and reliable gear performance.
