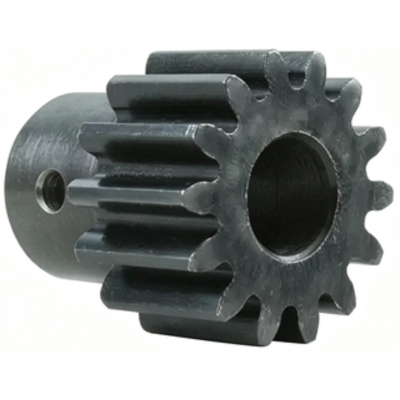

CGGCNBE
Price $ 1.57
| Part Number | CGGCNBE |
| System of Measurement | Inch |
| Gear Type | Spur |
| Pressure Angle | 20° |
| Component | Gear |
| Bore Type | Round |
| Gear Pitch | 32 |
| Number Of Teeth | 12 |
| Gear Pitch Diameter | 3/8" |
| OD | 0.44" |
| Face Width | 3/16" |
| Overall Width | 0.5" |
| For Shaft Diameter | 5/32" |
| Material | Acetal Plastic |
| Fabrication | Molded |
| Color | White |
| Hub Diameter | 0.281" |
| Hub Width | 0.313" |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
INTERCHANGE
The LILY bearing part series CGGCNBE is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CGGCNBE
