High Temperature Bearings
/

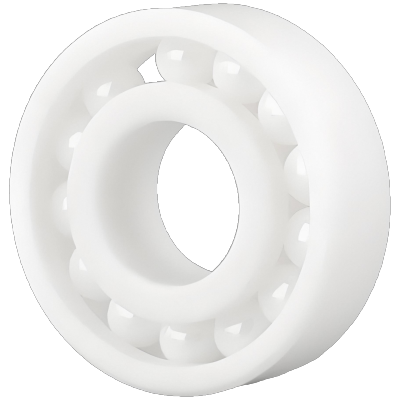

Zirconia MAX 400°C (752°F)
/
CEZR RLS5
CEZR RLS5
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
| Part Number | CEZR RLS5 |
| Cage Material |
|
| System of Measurement | Inch |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Bore Dia | 0.625000" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 1.562500" |
| Outer Dia Tolerance | -0.0004" to 0" |
| Width | 0.437500" |
| Width Tolerance | -0.005" to 0" |
| Ring Material | Zirconia |
| Ball Material | Zirconia Ceramic |
| Dynamic Radial Load(Cr) | 1290 lbf |
| Static Radial Load(C0r) | 640 lbf |
| Max Speed (X1000 rpm) | 1.68 |
| Lubrication | without |
| Maximum Temperature | 752 °F |
| Shaft Mount Type | Press Fit |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No | C0 |
| Radial Clearance | 0.00008" to 0.00071" |
| RoHS | Compliant |
| Weight | 49.50 g |
