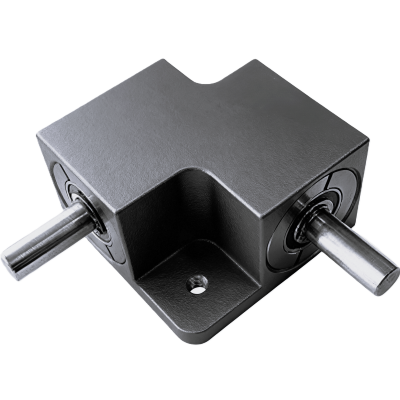

CEHHNDD
2477N33
$221.30
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Overview |
|
| Part Number | CEHHNDD |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Ball |
| Gear Type | Spiral Bevel |
| Input Connection Type | Shaft |
| Input Shaft Type | Keyed |
| Output Connection Type | Shaft |
| Output Shaft Type | Keyed |
| Shaft Orientation | Right Angle |
| Mounting Orientation | Any Angle |
| Input Shaft Rotation | Clockwise, Counterclockwise |
| Output Shaft Rotation | Opposite of Input |
| Number of Output Shafts | 1 |
Dimensions |
|
| Input Shaft Diameter | 5 mm |
| Input Shaft Length | 16 mm |
| Input Shaft Keyway Width | 2 mm |
| Input Shaft Keyway Depth | 1.2 mm |
| Input Shaft Keyway Length | 10 mm |
| Output Shaft Diameter | 5 mm |
| Output Shaft Length | 16 mm |
| Output Shaft Keyway Width | 2 mm |
| Output Shaft Keyway Depth | 1.2 mm |
| Output Shaft Keyway Length | 10 mm |
| Overall Length | 56 mm |
| Overall Width | 56 mm |
| Overall Height | 25 mm |
| Backlash Angle | 1 ° |
Material |
|
| Gear Material | Steel |
| Housing Material | Aluminum |
| Input Shaft Material | Hardened Steel |
| Output Shaft Material | Hardened Steel |
Performance |
|
| Radial Load Capacity | Not Rated |
| Efficiency | 94% @ 1750 rpm |
| Speed Ratio | 1:1 |
| Max Input Power | 0.19 |
| Max Output Torque | 6 in.-lbs. @ 1750 rpm |
| Max Input Speed (X1000 rpm) | 3000 |
| Max Output Speed (X1000 rpm) | 3000 |
Properties |
|
| Lubrication | Lubricated |
| Lubricant | Grease |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | China |
INTERCHANGE
The LILY Bearing part series CEHHNDD is a potential replacement for these common bearing part numbers.
