Ceramic Bearings
/
Ceramic Self Aligning Ball Bearings
/
Zirconia Self Aligning Ball Bearings
/

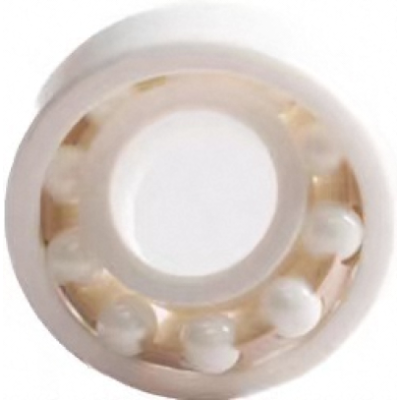

CE1215ZR
CE1215ZR
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
| Part Number | CE1215ZR |
| System of Measurement | Metric |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Double Row |
| Seal Type | Open |
| Bore Dia | 75 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| Outer Dia | 130 mm |
| Outer Dia Tolerance | -0.018mm to 0 |
| Width | 25 mm |
| Width Tolerance | -0.15mm to 0 |
| Shoulder Dia Of Inner Ring | 93.05 mm |
| Shoulder Dia Of Outer Ring | 114.2 mm |
| Chamfer Dimension | 1.5 mm |
| Ring Material | Zirconia |
| Balls Material | Zro2 |
| Cage Material | PEEK |
| Dynamic Radial Load | 2632 lbf |
| Static Radial Load | 1053 lbf |
| Max Speed (X1000 rpm) | 4.69 |
| Lubrication | Lubricated |
| Temperature Range | -176 to 752 °F |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 1.013 kg |
