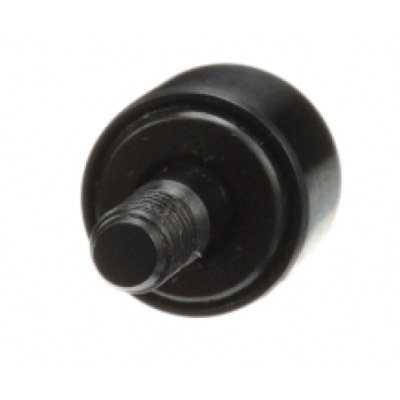

CCF 11/16 S

CCF 11/16 S Stud Type Rollers
Price $ 9.23
Number
Part Number CCF 11/16 S
Brand: LILY
|
Equivalent: McGill
System of Measurement Inch
For Load Direction Radial
Roller Shape Crowned
Internal Construction Full Complement
Type Standard Stud
Mounting Method Screwdriver Slot
Seal Type Sealed
Platform Camrol
Roller Material Bearing Steel
Roller Dia 0.6875"
Roller Width 0.4375"
Stud Dia 0.25"
Stud Length 0.75"
Threads 1/4-28
Minimum Thread Length 0.313"
Shoulder Dia 0.46"
Shoulder Length 0.03"
Lubrication Fitting Size 0.125"
Lubrication Hole Location Stud side
Crown Radius 8"
Clamping Torque 35 lbf
Max Speed 8300
Static Radial Load 1215 lbf
Dynamic Radial Load 955 lbf
RoHS Compliant
REACH Compliant
Weight 0.06 LB
