2032N27
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | CADCNCH |
| System of Measurement | Metric |
| Bearing Type | Plain |
| Plain Bearing Type | Sleeve |
| For Load Direction | Radial |
| For Shaft Diameter | 15 mm |
| Bore Dia | 15.03 mm |
| Bore Dia Tolerance | 0 mm to 0.02 mm |
| Outer Dia | 27 mm |
| Outer Dia Tolerance | 0 to 0.07 mm |
| Length | 19.4 mm |
| Length Tolerance | -0.254mm to 0.254mm |
| Spline OD | 28 mm |
| For Min Sheet Metal Thickness | 2 mm |
| Misalignment Capability | 5 ° |
| Dynamic Radial Load | 900 lbf |
| Static Radial Load | 900 lbf |
| Max Speed (X1000 rpm) | 0.06 |
| Material | 840 Bearing Bronze |
| Lubrication | Lubricated |
| Lubrication Method | Embedded |
| Lubricant | SAE 45 Oil |
| For Shaft Type | Round |
| Shaft Mount Type | Slip Fit |
| Temperature Range | -20° to 200° F |
| RoHS | Compliant |
| REACH | Compliant |
NOTE：All other trademarks are the property of their respective owners.
All other trademarks mentioned herein are used for the purpose of compatibility description and product identification only. Lily Bearing is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

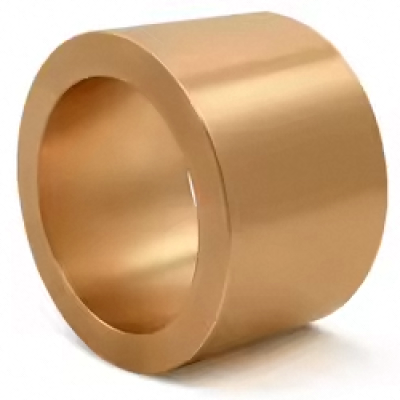

Design Features of CADCNCH Bearing
CADCNCH Bearing has a simple and effective design. The outer housing is made of sturdy metal or composite with holes for easy panel attachment. Inside, a porous bronze sleeve is soaked with oil to provide continuous lubrication. Mounting features like flanges or holes ensure secure installation. CADCNCH bore dia is 15.03 mm. Its outer dia is 27 mm. CADCNCH length is 19.4 mm. The bearing is durable, self-lubricating, and easy to install. This is ideal for various applications.
What Benefits Can CADCNCH Bearing Provide?
- Self-Lubricating: The oil-embedded sleeve ensures continuous lubrication. It can enhance the lifespan of the bearing and the shaft.
- Durability: The robust outer housing and high-quality sleeve material provide excellent wear resistance and stability.
- Easy Installation: The panel-mount design simplifies installation and alignment. This makes it user-friendly.
- Quiet Operation: The self-lubricating feature reduces friction, leading to quieter operation and less maintenance.
What Can CADCNCH Bearing Be Used for?
- Automotive: It can be used in various components to ensure smooth and reliable performance.
- Industrial Machinery: This bearing is ideal for machinery that operates in harsh conditions and requires minimal maintenance.
- Consumer Electronics: It is used in devices where silent operation and long life are essential.
- HVAC Systems: It ensures efficient and quiet operation in heating, ventilation, and air conditioning systems.
