BYR-1-5/8-XC

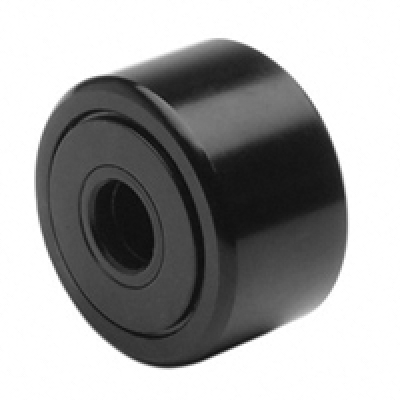

BYR-1-5/8-XC Yoke Style Inch Cam Followers
Part Number BYR-1-5/8-XC
Brand: LILY
|
Equivalent: SMITH
System of Measurement Inch
For Load Direction Radial
Roller Shape Cylindrical
Internal Construction Bushing
Type Yoke Type
Seal Type Sealed
Series Yoke Type Industrial Cam Followers
Roller Material Bearing Steel
Roller Dia 1.625"
Roller Width 0.875"
Yoke Bore Dia 0.4375"
Overall Width 0.9375"
Shoulder Dia 57/64
Dynamic Radial Load 5660 lbs
RoHS Compliant
REACH Compliant
(A) Bore Nominal Tolerance +.0002/-.0004
Recomm Shaft Dia Press Fit Max .4380
Recomm Shaft Dia Press Fit Min .4376
Recomm Shaft Dia Slip Fit Max .4372
Recomm Shaft Dia Slip Fit Min .4368
