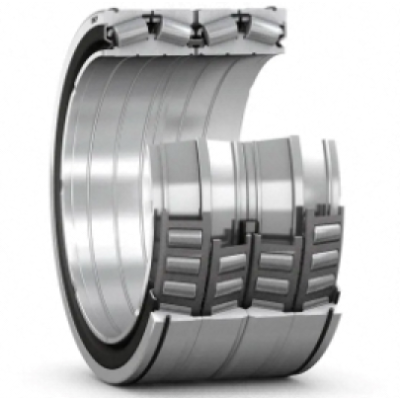

BT4B 331161 BG/HA1
| Part Number | BT4B 331161 BG/HA1 |
| System of Measurement | Metric |
| Type | Bearing |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered Roller |
| For Load Direction | Combined |
| Construction | Four-row |
| Seal Type | Open |
| Bore Dia | 317.5 mm |
| Bore Dia Tolerance | -0.04mm to 0 |
| Outer Dia | 447.675 mm |
| Outer Dia Tolerance | -0.045mm to 0 |
| Total Bearing Width Over Inner Rings | 327.025 mm |
| Total Bearing Width Over Inner Rings Tolerance | -0.25mm to 0 |
| Total Bearing Width Over Outer Rings | 327.025 mm |
| Total Bearing Width Over Outer Rings Tolerance | +0.4mm to -0.4mm |
| Abutment Diameter Shaft | 340 mm |
| Abutment Diameter Housing | 340 mm |
| Chamfer Dimension Inner Ring | min.3.3 mm |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Load | 1064250 lbf |
| Static Radial Load | 2430000 lbf |
| Fatigue Load Limit | 198000 lbf |
| Comparative Radial Load Rating | 261000 lbf |
| Comparative Axial Load Rating | 43425 lbf |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 363.76 lb |
})
