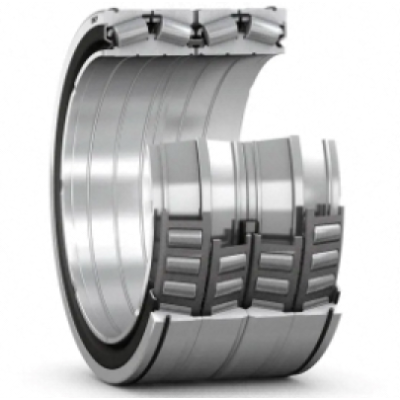

BT4B 331093 BG/HA1
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | BT4B 331093 BG/HA1 |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered |
| Type | Bearing |
| Seal Type | Open |
| For Load Direction | Combined |
| Construction | Four-Row |
| ABEC Rating | ABEC-1 |
Dimensions |
|
| Bore Dia | 585.788 mm |
| Bore Dia Tolerance | -0.05mm to 0 |
| Outer Dia | 771.525 mm |
| Outer Dia Tolerance | -0.075mm to 0 |
| Total Bearing Width Over Inner Rings | 479.425 mm |
| Total Bearing Width Over Inner Rings Tolerance | -0.25mm to 0 |
| Total Bearing Width Over Outer Rings | 479.425 mm |
| Total Bearing Width Over Outer Rings Tolerance | +0.4mm to -0.4mm |
| Chamfer Dimension Inner Ring | min.3.3 mm |
| Abutment Diameter Shaft | 622 mm |
| Abutment Diameter Housing | 622 mm |
Material |
|
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Steel |
Performance |
|
| Dynamic Radial Load | 2385000 lbf |
| Static Radial Load | 6750000 lbf |
| Fatigue Load Limit | 459000 lbf |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| Comparative Radial Load Rating | 596250 lbf |
| Comparative Axial Load Rating | 95850 lbf |
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 1366.87 lb |
Design Features of BT4B 331093 BG/HA1 Bearing
BT4B 331093 BG/HA1 is designed to handle heavy radial and axial loads simultaneously, making it ideal for high-load applications. BT4B 331093 BG/HA1 outer dia is 771.525 mm. Its bore dia is 585.788 mm. Its structure allows for excellent load distribution and increased rigidity, ensuring reliable performance in demanding environments such as rolling mills.
What Benefits Can BT4B 331093 BG/HA1 Bearing Provide?
- High Load Capacity: It can support heavy radial and axial loads, making it suitable for demanding applications such as heavy machinery and rolling mills.
- Improved Durability: Its robust design ensures even load distribution, reducing wear and extending the bearing’s service life.
- Enhanced Rigidity: The four-row configuration increases the overall rigidity of the bearing, improving stability in high-load environments.
- Efficient Operation: It reduces friction and heat generation, allowing for smoother operation and improved energy efficiency in large industrial machines.
What Can BT4B 331093 BG/HA1 Bearing Be Used for?
- Rolling Mills: Essential for supporting large radial and axial loads in steel, aluminum, and other metal rolling operations.
- Heavy Machinery: Used in construction and mining equipment where high load-bearing capacity and durability are required.
- Gearboxes: Provides reliable support in high-torque, heavy-load systems.
- Railway Axles: Ensures smooth and stable operation under heavy loads in rail transport.
- Wind Turbines: Applied in turbine rotor shafts for high load capacity and long-lasting performance.
