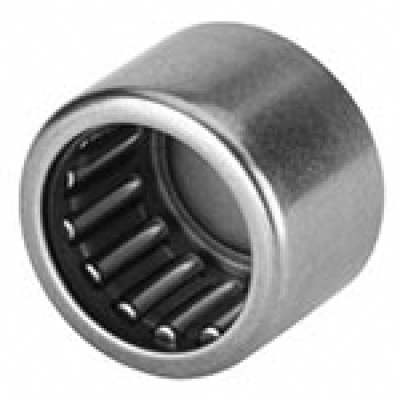

BCE1210
| Part Number | BCE1210 |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Inch |
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Series | Closed End |
| Bore Dia | 0.75" |
| Bore Dia Tolerance | Refer to note on the right drawing |
| Outer Dia | 1" |
| Outer Dia Tolerance | Not Rated |
| Width | 0.625" |
| Width Tolerance | -0.01" to 0" |
| Ring Material | Steel |
| Ball Material | Steel |
| Cage Material | Steel |
| Dynamic Radial Load | 2878 lbf |
| Static Radial Load | 3934 lbf |
| Max Speed (X1000 rpm) | 13.1 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight | 18 g |
})
