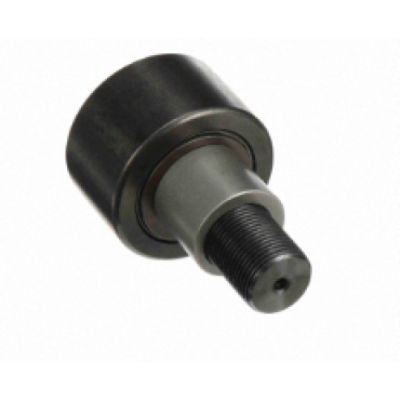

BCCFE 1 SB Cam Followers

BCCFE 1 SB Cam Followers
Price Not yet
Mcgill Part No. BCCFE 1 SB
LILY Part No. LBCCFE 1 SB
Cross Reference McGill
System of Measurement Inch
Platform Camrol
Type Eccentric Stud
Roller Dia 1"
Stud Roller Dia 1"
Roller Width 0.625"
Stud Roller Width 0.625"
Roller Material Bearing Steel, Black Oxide Finish
Stud Dia 0.4375"
Stud Length 1"
Seal Type Sealed
Lubrication Fitting Size 0.1875"
Lubrication Hole Location Stud side
Bushing Length 0.5"
Bushing Diameter 0.625"
Oil Hole Center 0.25"
Minimum Thread Length 0.5"
Adjustment Eccentric Bushing
Roller Shape Crowned
Tolerance Class P0 Equivalent
Hex Socket 0.25"
Threads 7/16-20
Relubricatable Yes
O D Configuration Crowned
Stud Type Standard Stud with Eccentric Bushing
Crown Radius 12
Eccentricity 0.03"
Clamping Torquein 250 lbf
Hex Slot Hex Hole
Weight 0.18 LB
Mounting Method Hex Hole
Internal Construction Bushing

Request a Quote

*
*
