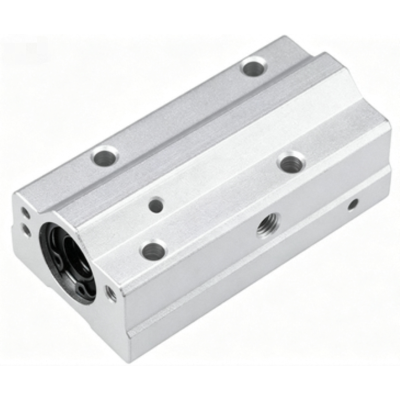

BAFCKBB
Part Number | BAFCKBB |
System of Measurement | Inch |
Bearing Type | Ball |
Alignment Style | Fixed Alignment |
Housing Type | Base Mount |
With End Seals | Yes |
Bore Dia | 0.5" |
Bore Dia Tolerance | -0.0004" to 0" |
Overall Length | 1 19/32" |
Overall Height | 1 1/4" |
Overall Width | 2" |
Center Height | 11/16" |
Center Height Tolerance | -0.004" to 0.004" |
Base Thickness | 11/32" |
Width | 2" |
Dynamic Radial Load | 110 lbs |
Static Radial Load | 175 lbs |
Bearing Material | Nickel-Plated,Steel |
Housing Material | Acetal |
Ball Material | Stainless Steel |
Temperature Range | -4° to 176° F |
Lubrication | Required |
RoHS | Compliant |
REACH | Compliant |
Diameter | 5/32" |
Length | 1 19/32" |
Number of | 4 |
Replaceable Insert Bearing | No |
Height | 1 1/4" |
Center -to-Center Length | 1" |
Center -to-Center Width | 1.688" |
INTERCHANGE
The LILY bearing part series BAFCKBB is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
BAFCKBB
