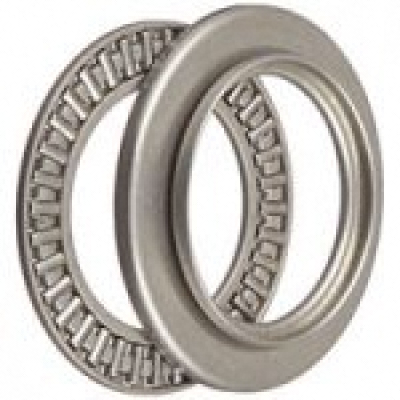

AXW17
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | AXW17 |
Brand: LILY  |
Interchangeable With: Schaeffler (INA) |
Characteristics |
|
| System of Measurement | Metric |
| Roller Bearing Type | Needle Roller |
| Type | Cages |
| For Load Direction | Thrust |
| Series | AXW |
Dimensions |
|
| Bore Dia | 17 mm |
| Outer Dia | 33 mm |
| Width | 3.2 mm |
| Thickness | 3.2 mm |
Material |
|
| Needle Material | Steel |
| Cage Material | Steel |
Performance |
|
| Dynamic Thrust Load | 2678 lbf |
| Static Thrust Load | 8888 lbf |
| Max Speed (X1000 rpm) | 12.1 |
| Temperature Range | -30° to 110 °C |
| Allocated Axial Bearing Washer | AS1730 |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
| ABEC Rating | ABEC-1 |
Design Features of AXW17
AXW17 features a structured design that holds a needle roller in place, ensuring even spacing and reducing friction for high load capacity. AXW17 outer dia is 33 mm. Its bore dia is 17 mm. Typically thin and made from materials like steel or plastic, this cage allows for better lubrication distribution and is precision-engineered for smooth operation in compact applications.
What Benefits Can AXW17 Provide?
- Reduced Friction: The cage maintains even spacing between needle rollers, minimizing contact and friction, which enhances efficiency.
- Improved Load Distribution: It ensures uniform load distribution across the needle rollers, increasing the bearing's load capacity.
- Enhanced Durability: The cage helps protect the needle rollers from misalignment and wear, extending the bearing's lifespan.
- Compact Design: Its thin profile allows for use in tight spaces while supporting high axial loads.
- Better Required: The cage design facilitates effective lubrication, reducing maintenance needs and improving performance.
- Stability: It prevents the needle rollers from skewing, ensuring stable operation under varying loads.
What Can AXW17 Be Used for?
- Automotive Transmissions: To support gears and handle axial loads in compact spaces.
- Industrial Equipment: In machines that require efficient load handling and smooth axial movement.
- Aerospace Components: For lightweight applications needing high performance and reliability.
- Construction Machinery: In pivot points and other load-bearing assemblies.
- Power Tools: To reduce friction and wear in rotating components.
