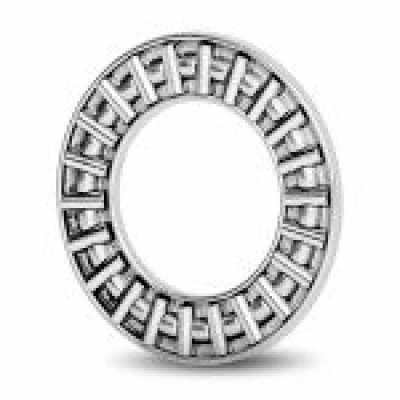

AXK90120
| Part Number | AXK90120 |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Bearing Type | Needle |
| Type | Cages |
| For Load Direction | Thrust |
| Series | AXK&TC |
| Bore Dia | 90 mm |
| Bore Dia Tolerance | 0.072mm to 0.292mm |
| Outer Dia | 120 mm |
| Outer Dia Tolerance | -0.530mm to -0.180mm |
| Height | 4 mm |
| Cage Material | Steel |
| Needle Material | Steel |
| Dynamic Thrust Load | 16425 lbf |
| Static Thrust Load | 91125 lbf |
| Max Speed (X1000 rpm) | 2.7 |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| RoHS | Compliant |
| Allocated Axial Bearing Washer | AS90120 |
})
