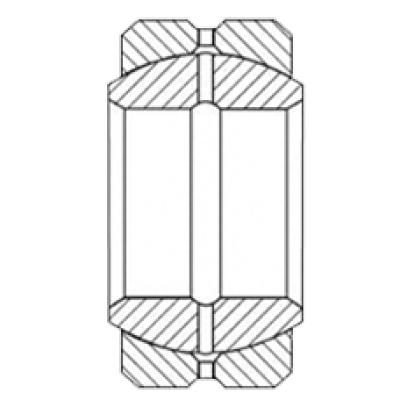

ASBY14V
$228.20
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
| Part Number | ASBY14V |
| System of Measurement | Inch |
| Bore Dia | 0.875000" |
| Bore Dia Tolerance | -0.0005" to 0" |
| Outer Dia | 1.75" |
| Outer Dia Tolerance | -0.0005" to 0" |
| Ball Width | 1.4" |
| Ball Width Tolerance | -0.005" to 0" |
| Race Width | 0.62" |
| Race Width Tolerance | -0.005" to 0" |
| Shoulder Dia | 1.14" |
| Ball Dia | 1.531000" |
| Race Chamfered | 0.044" |
| Mis Alignment | 18 ° |
| Staking groove Data(P) | 0.06" |
| Staking groove Data(R) | 0.02" |
| Staking groove Data(S) | 0.03" |
| Staking groove Data(X) | 0.08" |
| Dynamic Radial Load | 36510 lbf |
| Static Radial Load | 65720 lbf |
| Weight | 0.43 lbs |
