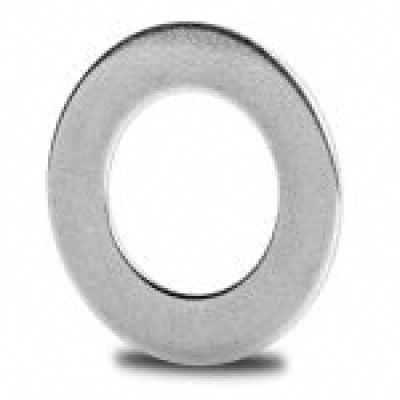

AS130170
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | AS130170 |
Brand: LILY  |
Interchangeable With: Schaeffler (INA) |
Characteristics |
|
| System of Measurement | Metric |
| Roller Bearing Type | Needle Roller |
| Type | Washers |
Dimensions |
|
| Bore Dia | 130 mm |
| Bore Dia Tolerance | 0.085mm to 0.485mm |
| Outer Dia | 170 mm |
| Outer Dia Tolerance | -0.715mm to -0.085mm |
| Width | 1 mm |
| Thickness | 1 mm |
Material |
|
| Material | Spring Steel |
Performance |
|
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight | 65 g |
Design Features of AS130170 Bearing
AS130170 is thin, flat, and has a hardened, precision-ground surface for smooth operation and durability, supporting high axial loads. AS130170 outer dia is 170 mm. Its bore dia is 130 mm. It is often made from materials like steel or stainless steel and may include lubrication grooves for better performance.
What Benefits Can AS130170 Bearing Provide?
- Compact Design: Its thin, flat shape allows it to fit into tight axial spaces.
- High Load Capacity: It supports heavy axial loads while maintaining smooth operation.
- Durability: The hardened surface ensures long-lasting wear resistance.
- Precise Alignment: Precision-ground surfaces ensure even load distribution and reduced friction.
- Versatile Spring Steel Options: Available in materials suited for various environments, such as steel or stainless steel.
What Can AS130170 Bearing Be Used for?
- Automotive Gearboxes: To support gears and handle axial loads in compact spaces.
- Industrial Machinery: In machines that require smooth axial movement under high loads.
- Aerospace Components: For lightweight applications where efficient load handling is crucial.
- Construction Equipment: In pivot points and other load-bearing areas.
- Power Tools: To reduce friction and wear in rotating components.
