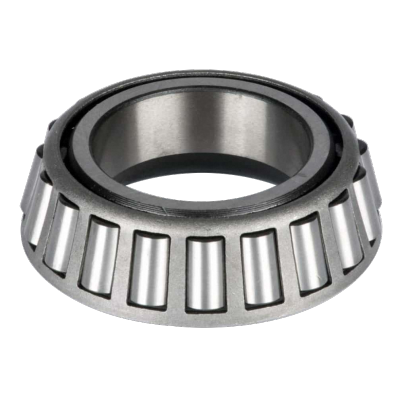

95514X
| Part Number | 95514X |
Brand: LILY  | |
Equivalent: Timken |
| System of Measurement | Inch |
| Type | Cones |
| Bearing Part Number | 95514X-95905 , 95514X-95912 , 95514X-95923V , 95514X-95925 , 95514X-95926 , 95514X-95928 , 95514X-95929 , 95514X-95962 , 95514X-95975 |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered Roller |
| For Load Direction | Combined |
| Construction | Single Row |
| Seal Type | Open |
| Series | 95000 |
| Bore Dia | 5.1168" |
| Bore Dia Tolerance | +0.001" to 0 |
| Cone Width | 2.7053" |
| Cone Width Tolerance | +0.003" to -0.01 |
| Cone Backface ToClear Radius | 0.13" |
| Cone Frontface Backing Diameter | 5.79" |
| Cone Backface Backing Diameter | 5.94" |
| Cage Cone Frontface Clearance | 0.09" |
| Cage Cone Backface Clearance | 0.18" |
| Effective Center Location | -0.55" |
| Ring Material | Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Load | 127000 lbf |
| Static Radial Load | 179000 lbf |
| Dynamic Radial Rating(90 Million Revolutions)(C90) | 32900 lbf |
| Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) | 221000 lbf |
| Dynamic Thrust Rating(90 Million Revolutions)(Ca90) | 20800 lbf |
| Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) | 57300 lbf |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| RoHS | Compliant |
| REACH | Compliant |
})
