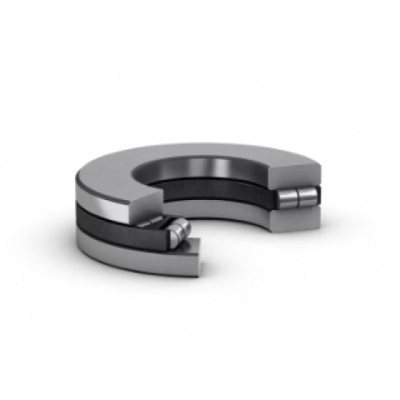

89314 TN
89314 TN
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
Overview |
|
| Part Number | 89314 TN |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Thrust |
| Number of Rows | 2 |
| Roller And Cage Thrust Assembly | K 89314 TN |
Dimensions |
|
| Bore Dia | 70 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| Outer Dia | 125 mm |
| Outer Dia Tolerance | -0.025mm to 0 |
| Width | 34 mm |
| Chamfer Dimension Housing Washer r1,2 (min.) | 1.1 mm |
| Bore Diameter Housing Washer | 72 mm |
| Outside Diameter Shaft Washer | 125 mm |
| Height Shaft Washer | 12 mm |
| Shaft Washer | WS 89314 |
| Housing Washer | GS 89314 |
| Height Tolerance | -0.30mm to +0.02mm |
Material |
|
| Roller Material | Chrome Steel |
| Cage Material | Glass fibre reinforced PA66 cage |
| Washer Material | Chrome Steel |
Performance |
|
| Dynamic Radial Load | 41850 lbf |
| Static Radial Load | 180000 lbf |
| Max Speed (X1000 rpm) | 2.6 |
| Temperature Range | -30° to 110 °C |
Properties |
|
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 1.82 kg |
