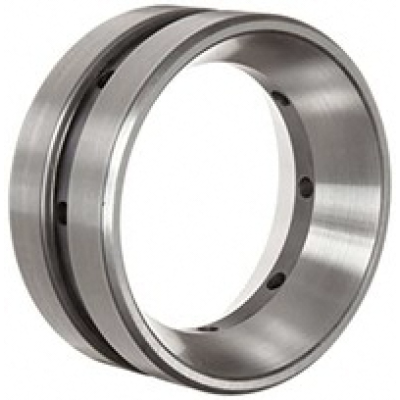

78549D
Part Number | 78549D |
System of Measurement | Inch |
Type | Cups |
Cups Type | Standard |
Series | 78000C |
Outer Dia | 5.5" |
Outer Dia Tolerance | +0.001" to 0 |
Double Cup Width | 2.0395" |
Double Cup Width Tolerance | +0.002" to -0.01 |
Cup Backface ToClear Radius | 0.06" |
Cup Frontface Backing Diameter | 5.19" |
Ring Material | Chrome Steel |
Heat Generation Factor(Rib Roller End)(G2) | 17.6 |
Heat Generation Factor(Roller Raceway)(G1) | 71.3 |
Temperature Range | -30° to 110 °C |
ABEC Rating | ABEC-1 |
RoHS | Compliant |
REACH | Compliant |
