Flow Meter Miniature Bearings
/
Flow Meter Miniature Bearings Catalogue
/

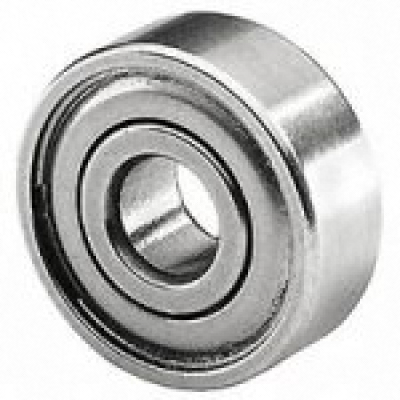

697hzzp4
697hzzp4
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
| Part Number | 697hzzp4 |
| System of Measurement | Metric |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Shielded |
| Bore Dia | 7 mm |
| Bore Dia Tolerance | -0.0004mm to 0 |
| Outer Dia | 17 mm |
| Outer Dia Tolerance | -0.0004mm to 0 |
| Width | 5 mm |
| Width Tolerance | -0.0004mm to 0 |
| Ring Material | 440C Stainless Steel |
| Ball Material | 440C Stainless Steel |
| Cage Material | 300 Series Stainless Steel |
| Shield Material | 300 Series Stainless Steel |
| Dynamic Radial Load | 276 lbf |
| Static Radial Load | 117 lbf |
| Max Speed (X1000 rpm) | 32.4 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | P4 |
| Radial Clearance Trade No | MC3 |
| Radial Clearance | 0.002mm to 0.013mm |
| RoHS | Compliant |
| REACH | Compliant |
| Ball Dia | 2.381 mm |
| Ball Qty | 9 |
| Weight | 5.01 g |
