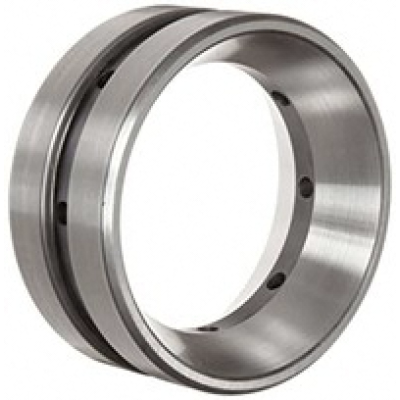

672875D
| Part Number | 672875D |
| System of Measurement | Inch |
| Type | Cups |
| Cups Type | Standard |
| Series | 670000 |
| Outer Dia | 28.746" |
| Outer Dia Tolerance | +0.003" to 0 |
| Double Cup Width | 7" |
| Double Cup Width Tolerance | +0.002" to -0.01 |
| Cup Backface ToClear Radius | 0.06" |
| Cup Frontface Backing Diameter | 26.93" |
| Ring Material | Chrome Steel |
| Heat Generation Factor(Rib Roller End)(G2) | 343 |
| Heat Generation Factor(Roller Raceway)(G1) | 4970 |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| RoHS | Compliant |
| REACH | Compliant |
})
