| Part Number | 6316-M-J20AA |
Brand: LILY  |
Interchangeable With: FAG |
| System of Measurement | Metric |
| Ball Type | Ball |
| For Load Direction | Radial |
| Coating | J20AA |
| Construction | Single Row |
| Seal Type | Open |
| Bore Dia | 80 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| Outer Dia | 170 mm |
| Outer Dia Tolerance | -0.025mm to 0 |
| Width | 39 mm |
| Width Tolerance | -0.15mm to 0 |
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | Solid Brass |
| Dynamic Radial Load(Cr) | 29451.439 lbf |
| Static Radial Load(C0r) | 19559.353 lbf |
| Max Speed (X1000 rpm) | 7 |
| Lubrication | without |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30 °C to 150 °C |
| Tolerance Class | PN |
| Dimensional/Heat Stabilization | S0(150 °C) |
| Radial Clearance Trade No | CN |
| Radial Clearance | 0.01mm to 0.03mm |
| RoHS | Compliant |
| Weight | 4.36 kg |

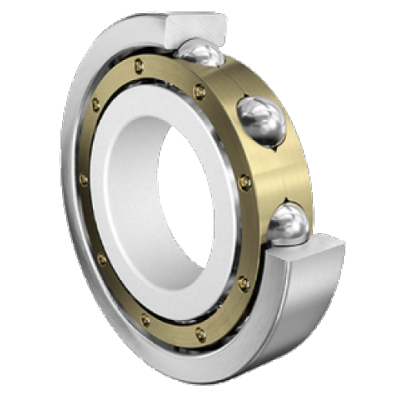

Design Features of 6316-M-J20AA Bearing
6316-M-J20AA Bearing features a protective ceramic layer on its surface, enhancing resistance to wear, corrosion, and electrical conductivity. 6316-M-J20AA outer dia is 170 mm. Its bore dia is 80 mm. This coating improves the bearing's durability, enabling it to operate efficiently in harsh environments, including high temperatures and chemically aggressive conditions.
What Benefits Can 6316-M-J20AA Bearing Provide?
- Increased durability: The ceramic coating enhances resistance to wear, corrosion, and abrasion, extending the bearing's lifespan, especially in harsh environments.
- Electrical insulation: The ceramic layer acts as an insulator, preventing electrical currents from passing through the bearing, which is crucial in applications like electric motors.
- Improved performance in extreme conditions: It performs well in high-temperature and chemically aggressive environments, maintaining smooth operation and reducing maintenance needs.
- Reduced friction: The coating can lower friction, improving efficiency and reducing energy consumption in rotating equipment.
What Can 6316-M-J20AA Bearing Be Used for?
- Electric motors and generators: The ceramic coating provides electrical insulation, preventing electrical currents from damaging the bearing and the equipment.
- Aerospace: It is used in aircraft components where high-performance, resistance to extreme temperatures, and durability are essential.
- Industrial machinery: In industries like manufacturing and mining, ceramic-coated bearings withstand abrasive materials, chemicals, and high loads.
- Wind turbines: It helps prevent electrical discharge damage, improving reliability in wind energy systems.
- Automotive applications: Ceramic-coated bearing is used in high-performance engines and turbochargers, where it can handle high speeds, heat, and reduce wear.
