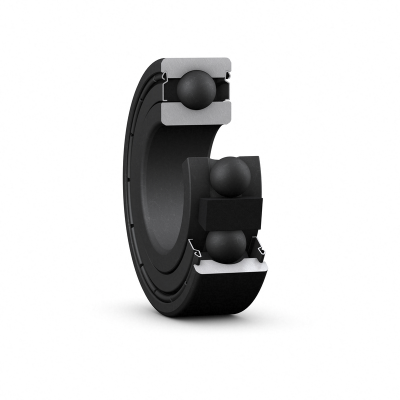

6315-2Z/VA208
| Part Number | 6315-2Z/VA208 |
| System of Measurement | Metric |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Shielded |
| Bore Dia | 75 mm |
| Bore Dia Tolerance | -0.015 mm to 0 |
| Outer Dia | 160 mm |
| Outer Dia Tolerance | -0.025 mm to 0 |
| Width | 37 mm |
| Width Tolerance | -0.15 mm to 0 |
| Ring Material | High Temperature Steel |
| Ball Material | High Temperature Bearing Steel |
| Cage Material | Sheet Medal |
| Dynamic Radial Load(Cr) | 26752 lbf |
| Static Radial Load(C0r) | 17198 lbf |
| Max Speed (X1000 rpm) | 0.03 |
| Lubrication | Required |
| Maximum Temperature | 662°F |
| Radial Clearance Trade No | C5 |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 3.17 kg |
})
