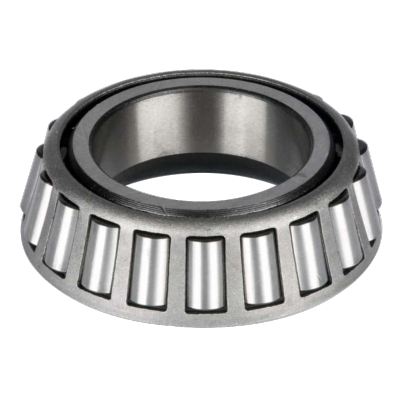

55206C
| Part Number | 55206C |
Brand: LILY  | |
Equivalent: Timken |
| System of Measurement | Inch |
| Type | Cones |
| Bearing Part Number | 55206C-55434 , 55206C-55437 , 55206C-55443 , 55206C-55437-B |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered Roller |
| For Load Direction | Combined |
| Construction | Single Row |
| Seal Type | Open |
| Series | 55000C |
| Bore Dia | 2.0625" |
| Bore Dia Tolerance | +0.005" to 0 |
| Cone Width | 1.0594" |
| Cone Width Tolerance | +0.003" to -0.01 |
| Cone Backface ToClear Radius | 0.14" |
| Cone Frontface Backing Diameter | 2.54" |
| Cone Backface Backing Diameter | 2.83" |
| Cage Cone Frontface Clearance | 0.16" |
| Cage Cone Backface Clearance | 0.17" |
| Effective Center Location | 0.3" |
| Ring Material | Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Load | 34000 lbf |
| Static Radial Load | 36200 lbf |
| Dynamic Radial Rating(90 Million Revolutions)(C90) | 8810 lbf |
| Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) | 59200 lbf |
| Dynamic Thrust Rating(90 Million Revolutions)(Ca90) | 13300 lbf |
| Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) | 15300 lbf |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| RoHS | Compliant |
| REACH | Compliant |
})
