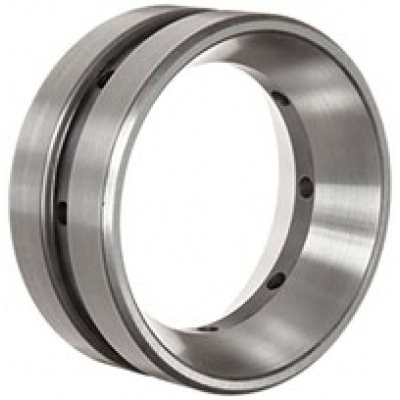

53376D
| Part Number | 53376D |
| System of Measurement | Inch |
| Type | Cups |
| Bearing Part Number | 53150-53376D , 53162-53376D , 53176-53376D , 53177-53376D , 53178-53376D |
| Cups Type | Standard |
| Series | 53000 |
| Outer Dia | 3.75" |
| Outer Dia Tolerance | +0.001" to 0 |
| Double Cup Width | 1.75" |
| Double Cup Width Tolerance | +0.002" to -0.01 |
| Cup Backface ToClear Radius | 0.03" |
| Cup Frontface Backing Diameter | 3.54" |
| Ring Material | Chrome Steel |
| Heat Generation Factor(Rib Roller End)(G2) | 9.63 |
| Heat Generation Factor(Roller Raceway)(G1) | 26.7 |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| RoHS | Compliant |
| REACH | Compliant |
})
