376DE

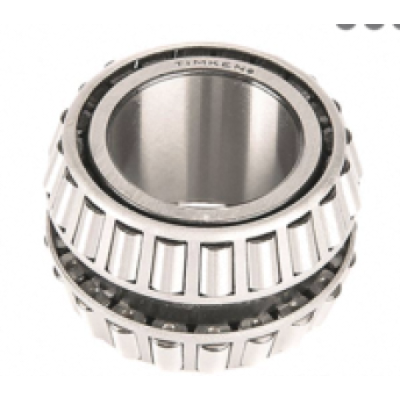

376DE Double Cones (Imperial)
Part Number 376DE
System of Measurement Inch
Type Cones
Bearing Part Number 376DE-372 , 376DE-372A , 376DE-374
Bearing Type Roller
Roller Bearing Type Tapered Roller
For Load Direction Combined
Construction Double Row
Seal Type Open
Series 375
Bore Dia 1.875"
Bore Dia Tolerance +0.005" to 0
Double Cone Width 2.094"
Double Cone Width Tolerance +0.003" to -0.01
Cone Backface ToClear Radius 0.03"
Cone Frontface Backing Diameter 2.17"
Cone Backface Backing Diameter 2.17"
Cage Cone Frontface Clearance 0.09"
Static Radial Load 22700 lbf
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Rating(90 Million Revolutions) 5120 lbf
Dynamic Radial Rating(Two Row 1 Million Revolutions) 34400 lbf
Dynamic Radial Rating(1 Million Revolutions) 19800 lbf
Dynamic Thrust Rating(90 Million Revolutions) 2970 lbf
Dynamic Radial Rating(Two Row 90 Million Revolutions) 8920 lbf
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
