3720

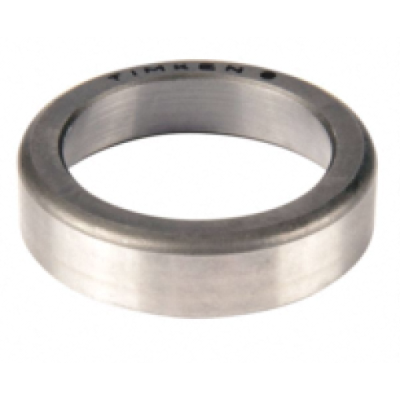

3720 Single Cups (Imperial)
Part Number 3720
Brand: LILY
|
Equivalent: Timken
System of Measurement Inch
Type Cups
Bearing Part Number 3760-3720 , 3762-3720 , 3767-3720 , 3767A-3720 , 3774-3720 , 3775-3720 , 3776-3720 , 3777-3720 , 3778-3720 , 3779-3720 , 3780-3720 , 3780V-3720 , 3781-3720 , 3782-3720 , 3783-3720 , 3784-3720 , 3795-3720 , 3767-3720-B , 3775-3720-B , 3776-3720-B , 3778-3720-B , 3779-3720-B , 3780-3720-B
Cups Type Standard
Series 3700
Outer Dia 3.6718"
Outer Dia Tolerance +0.001" to 0
Cup Width 0.9375"
Cup Width Tolerance +0.002" to -0.01
Cup Backface ToClear Radius 0.13"
Cup Frontface Backing Diameter 3.50"
Cup Backface Backing Diameter 3.23"
Ring Material Chrome Steel
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
RoHS Compliant
REACH Compliant
