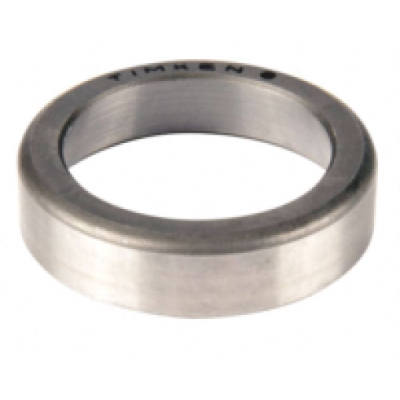

3325
Part Number | 3325 |
Brand: LILY | |
Equivalent: Timken |
System of Measurement | Inch |
Type | Cups |
Bearing Part Number | 3378-3325 , 3379-3325 , 3381-3325 , 3382-3325 , 3383-3325 , 3384-3325 , 3386-3325 , 3387-3325 |
Cups Type | Standard |
Series | 3300 |
Outer Dia | 3.1486" |
Outer Dia Tolerance | +0.001" to 0 |
Cup Width | 0.9375" |
Cup Width Tolerance | +0.002" to -0.01 |
Cup Backface ToClear Radius | 0.13" |
Cup Frontface Backing Diameter | 2.95" |
Cup Backface Backing Diameter | 2.76" |
Ring Material | Chrome Steel |
Temperature Range | -30° to 110 °C |
ABEC Rating | ABEC-1 |
RoHS | Compliant |
REACH | Compliant |
