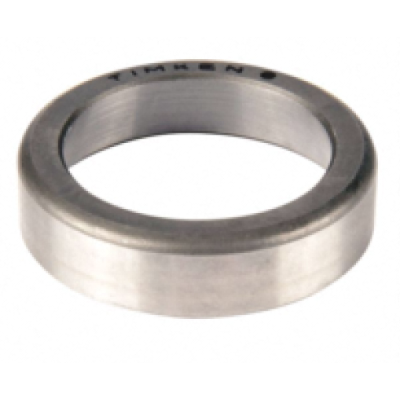

25519
| Part Number | 25519 |
Brand: LILY  | |
Equivalent: Timken |
| System of Measurement | Inch |
| Type | Cups |
| Bearing Part Number | 25570-25519 , 25572-25519 , 25576-25519 , 25577-25519 , 25578-25519 , 25580-25519 , 25581-25519 , 25582-25519 , 25584-25519 , 25584A-25519 , 25590-25519 , 25592-25519 |
| Cups Type | Standard |
| Series | 25500 |
| Outer Dia | 3.25" |
| Outer Dia Tolerance | +0.001" to 0 |
| Cup Width | 0.75" |
| Cup Width Tolerance | +0.002" to -0.01 |
| Cup Backface ToClear Radius | 0.08" |
| Cup Frontface Backing Diameter | 3.05" |
| Cup Backface Backing Diameter | 2.87" |
| Ring Material | Chrome Steel |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| RoHS | Compliant |
| REACH | Compliant |
})
