Product Categories / Sprockets / Sprockets for Metric Roller Chain(Metric) / ISO - 24B-2, METRIC 120-2 - 1.500" (38.10MM) PITCH, DUPLEX.
  • Interchangeable With :
  • Martin

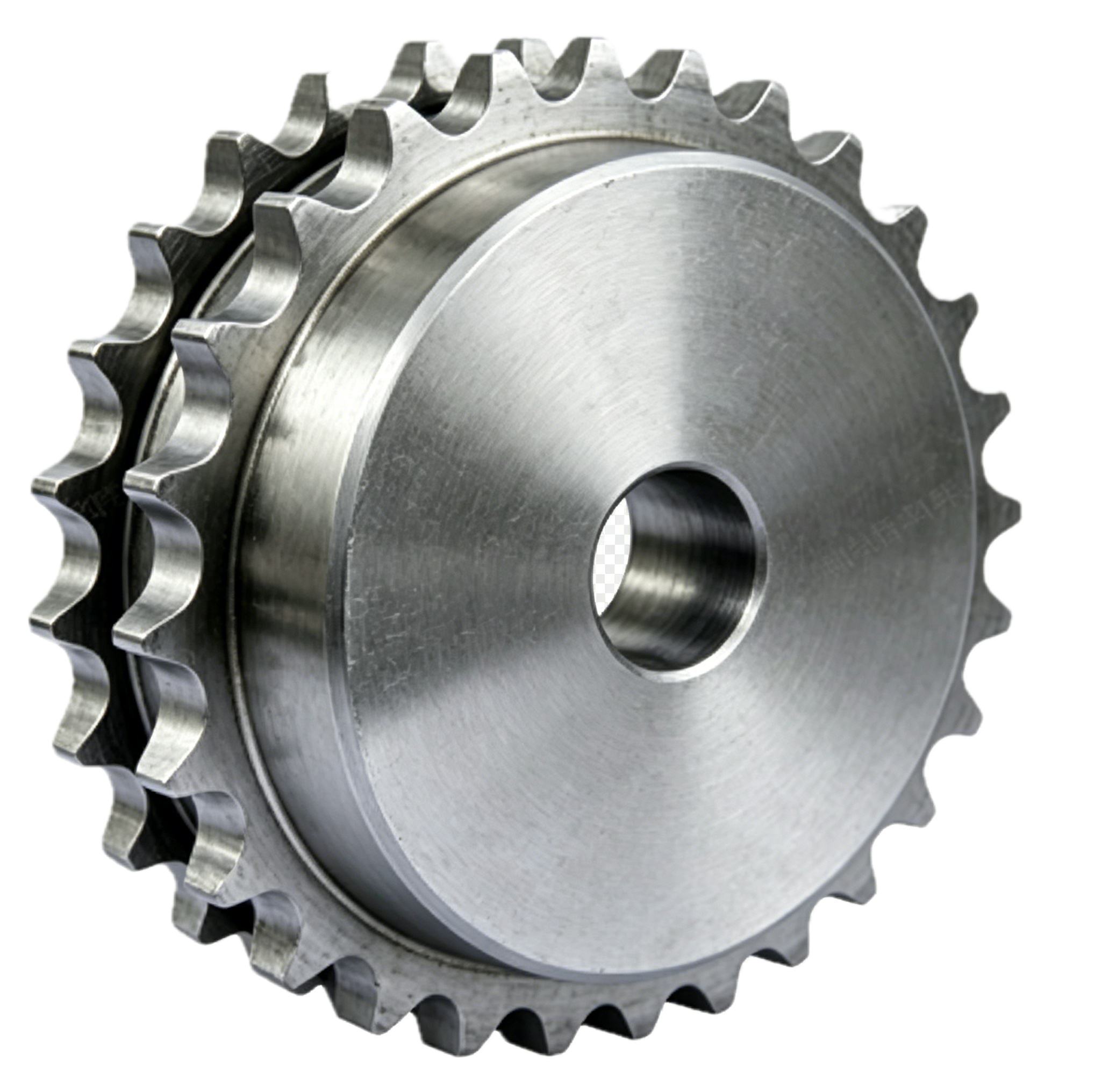

ISO - 24B-2, METRIC 120-2 - 1.500" (38.10MM) PITCH, DUPLEX.

36 Products
ISO - 24B-2, METRIC 120-2 - 1.500 ISO - 24B-2, METRIC 120-2 - 1.500" (38.10MM) PITCH, DUPLEX.
Part Number
Number Of Teeth
For Roller Chain Trade Size
Pitch Diameter
Bore Dia
Bore Max
Chain Pitch
Hub Dia
Hub Length Thru
Type
WT.lb(APPROX)
>
Part Number
Number Of Teeth
For Roller Chain Trade Size
Pitch Diameter
Bore Dia
Bore Max
Chain Pitch
Hub Dia
Hub Length Thru
Type
WT.lb(APPROX)
>
D24B16
16
24B-2
195.29 mm
32 mm
100 mm
38.1 mm
150 mm
100 mm
B
16.35 kg
D24B13
13
24B-2
159.2 mm
32 mm
76 mm
38.1 mm
114 mm
100 mm
B
9.92 kg
D24B15
15
24B-2
183.25 mm
32 mm
93 mm
38.1 mm
140 mm
100 mm
B
14.13 kg
D24B11
11
24B-2
135.23 mm
32 mm
60 mm
38.1 mm
90 mm
100 mm
B
6.5 kg
D24B12
12
24B-2
147.21 mm
32 mm
67 mm
38.1 mm
102 mm
100 mm
B
8.13 kg
D24B14
14
24B-2
171.22 mm
32 mm
84 mm
38.1 mm
128 mm
100 mm
B
11.98 kg
D24C95
95
24B-2
1152.33 mm
40 mm
161 mm
38.1 mm
238 mm
159 mm
C
309 kg
D24C96
96
24B-2
1164.46 mm
40 mm
161 mm
38.1 mm
238 mm
159 mm
C
313.43 kg
D24B26
26
24B-2
316.09 mm
40 mm
108 mm
38.1 mm
160 mm
102 mm
B
42.26 kg
D24B30
30
24B-2
364.49 mm
40 mm
108 mm
38.1 mm
160 mm
102 mm
B
54.79 kg
D24C45
45
24B-2
546.19 mm
40 mm
137 mm
38.1 mm
190 mm
152 mm
C
85.28 kg
D24C54
54
24B-2
655.26 mm
40 mm
161 mm
38.1 mm
238 mm
159 mm
C
127.46 kg
D24C57
57
24B-2
691.62 mm
40 mm
161 mm
38.1 mm
238 mm
159 mm
C
140.74 kg
D24B19
19
24B-2
231.48 mm
40 mm
108 mm
38.1 mm
160 mm
100 mm
B
22.56 kg
D24C48
48
24B-2
582.54 mm
40 mm
137 mm
38.1 mm
190 mm
152 mm
C
90.97 kg
D24C60
60
24B-2
727.99 mm
40 mm
161 mm
38.1 mm
238 mm
159 mm
C
154.02 kg
D24C68
68
24B-2
824.97 mm
40 mm
161 mm
38.1 mm
238 mm
159 mm
C
189.45 kg
D24B24
24
24B-2
291.9 mm
40 mm
108 mm
38.1 mm
160 mm
102 mm
B
36 kg
D24B25
25
24B-2
303.99 mm
40 mm
108 mm
38.1 mm
160 mm
102 mm
B
39.13 kg
D24B29
29
24B-2
352.39 mm
40 mm
108 mm
38.1 mm
160 mm
102 mm
B
51.66 kg
D24C42
42
24B-2
509.83 mm
40 mm
137 mm
38.1 mm
190 mm
152 mm
C
79.59 kg
D24B17
17
24B-2
207.35 mm
40 mm
100 mm
38.1 mm
150 mm
100 mm
B
17.85 kg
D24B18
18
24B-2
219.41 mm
40 mm
108 mm
38.1 mm
160 mm
100 mm
B
20.35 kg
D24B23
23
24B-2
279.8 mm
40 mm
108 mm
38.1 mm
160 mm
102 mm
B
32.87 kg
D24C114
114
24B-2
1382.72 mm
40 mm
161 mm
38.1 mm
238 mm
159 mm
C
393.13 kg
D24C76
76
24B-2
921.96 mm
40 mm
161 mm
38.1 mm
238 mm
159 mm
C
224.87 kg
D24C50
50
24B-2
606.78 mm
40 mm
137 mm
38.1 mm
190 mm
152 mm
C
94.76 kg
D24B21
21
24B-2
255.63 mm
40 mm
108 mm
38.1 mm
160 mm
100 mm
B
26.99 kg
D24B22
22
24B-2
267.72 mm
40 mm
108 mm
38.1 mm
160 mm
102 mm
B
29.74 kg
D24B27
27
24B-2
328.19 mm
40 mm
108 mm
38.1 mm
160 mm
102 mm
B
45.4 kg
D24B28
28
24B-2
340.29 mm
40 mm
108 mm
38.1 mm
160 mm
102 mm
B
48.53 kg
D24C38
38
24B-2
461.37 mm
40 mm
137 mm
38.1 mm
190 mm
152 mm
C
72.01 kg
D24C72
72
24B-2
873.46 mm
40 mm
161 mm
38.1 mm
238 mm
159 mm
C
207.16 kg
D24B20
20
24B-2
243.55 mm
40 mm
108 mm
38.1 mm
160 mm
100 mm
B
24.78 kg
D24B32
32
24B-2
388.71 mm
40 mm
108 mm
38.1 mm
160 mm
102 mm
B
61.05 kg
D24C40
40
24B-2
485.6 mm
40 mm
137 mm
38.1 mm
190 mm
152 mm
C
75.8 kg
