Flange-Mounted Linear Ball Bearings
66 Products

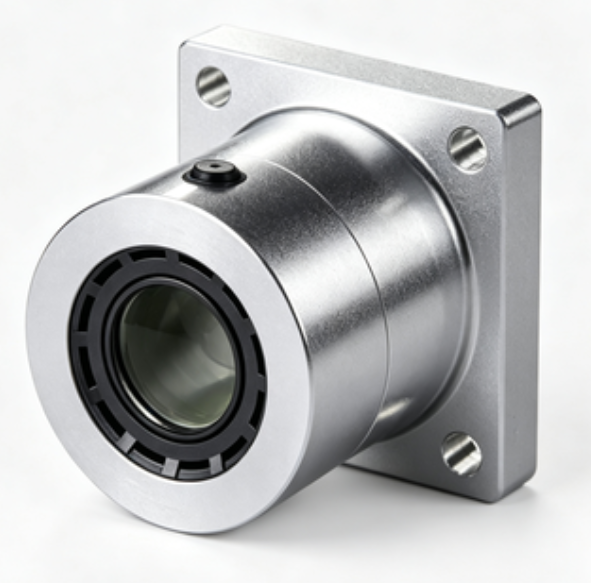

Flange-Mounted Linear Ball Bearings
The flanged housing makes these bearings a good solution for vertical linear motion applications.
Part Number
Bore Dia
Overall
Length
Length
Overall
Width
Width
With End
Seals
Seals
Dynamic Radial
Load
Load
Static Radial
Load
Load
Temperature
Range
Range
GEIDKFB
0.25"
3/4"
1 1/4"
Yes
45 lbs
60 lbs
-4° to 176° F
GEIDKGB
0.25"
3/4"
1"
Yes
45 lbs
60 lbs
-4° to 176° F
GEIDKHB
0.25"
1 3/8"
1 1/4"
Yes
70 lbs
115 lbs
-4° to 176° F
GEIDKIB
0.25"
1 3/8"
1"
Yes
70 lbs
115 lbs
-4° to 176° F
GEIDKFC
0.375"
7/8"
1 1/2"
Yes
50 lbs
70 lbs
-4° to 176° F
GEIDKGC
0.375"
7/8"
1 1/4"
Yes
50 lbs
70 lbs
-4° to 176° F
GEIDKHC
0.375"
1 5/8"
1 1/2"
Yes
75 lbs
140 lbs
-4° to 176° F
GEIDKIC
0.375"
1 5/8"
1 1/4"
Yes
75 lbs
140 lbs
-4° to 176° F
GEIDKFD
0.5"
1 1/4"
1 3/4"
Yes
110 lbs
175 lbs
-4° to 176° F
GEIDKGD
0.5"
1 1/4"
1 3/8"
Yes
110 lbs
175 lbs
-4° to 176° F
GEIDKHD
0.5"
2 3/8"
1 3/4"
Yes
180 lbs
350 lbs
-4° to 176° F
GEIDKID
0.5"
2 3/8"
1 3/8"
Yes
180 lbs
350 lbs
-4° to 176° F
GEIDKFE
0.625"
1 1/2"
2"
Yes
170 lbs
265 lbs
-4° to 176° F
GEIDKGE
0.625"
1 1/2"
1 1/2"
Yes
170 lbs
265 lbs
-4° to 176° F
GEIDKHE
0.625"
2 13/16"
2"
Yes
275 lbs
525 lbs
-4° to 176° F
GEIDKIE
0.625"
2 13/16"
1 1/2"
Yes
275 lbs
525 lbs
-4° to 176° F
GEIDKFF
0.75"
1 5/8"
2 3/16"
Yes
190 lbs
305 lbs
-4° to 176° F
GEIDKGF
0.75"
1 5/8"
1 11/16"
Yes
190 lbs
305 lbs
-4° to 176° F
GEIDKHF
0.75"
3 1/8"
2 3/16"
Yes
305 lbs
615 lbs
-4° to 176° F
GEIDKIF
0.75"
3 1/8"
1 11/16"
Yes
305 lbs
615 lbs
-4° to 176° F
GEIDKFG
1"
2 1/4"
2 1/2"
Yes
220 lbs
350 lbs
-4° to 176° F
GEIDKGG
1"
2 1/4"
2"
Yes
220 lbs
350 lbs
-4° to 176° F
GEIDKHG
1"
4 5/16"
2 1/2"
Yes
350 lbs
705 lbs
-4° to 176° F
GEIDKIG
1"
4 5/16"
2"
Yes
350 lbs
705 lbs
-4° to 176° F
GEIDKFH
1.25"
2 5/8"
3 1/8"
Yes
350 lbs
615 lbs
-4° to 176° F
GEIDKGH
1.25"
2 5/8"
2 1/2"
Yes
350 lbs
615 lbs
-4° to 176° F
GEIDKHH
1.25"
5"
3 1/8"
Yes
560 lbs
1200 lbs
-4° to 176° F
GEIDKIH
1.25"
5"
2 1/2"
Yes
560 lbs
1200 lbs
-4° to 176° F
GEIDKFI
1.5"
3"
3 3/4"
Yes
490 lbs
900 lbs
-4° to 176° F
GEIDKGI
1.5"
3"
3"
Yes
490 lbs
900 lbs
-4° to 176° F
GEIDKHI
1.5"
5 11/16"
3 3/4"
Yes
770 lbs
1800 lbs
-4° to 176° F
GEIDKII
1.5"
5 11/16"
3"
Yes
770 lbs
1800 lbs
-4° to 176° F
GEIDKFJ
2"
4"
4 3/8"
Yes
855 lbs
1700 lbs
-4° to 176° F
GEIDKGJ
2"
4"
3 1/2"
Yes
855 lbs
1700 lbs
-4° to 176° F
GEIDKHJ
2"
7 3/4"
4 3/8"
Yes
1300 lbs
3500 lbs
-4° to 176° F
GEIDKIJ
2"
7 3/4"
3 1/2"
Yes
1300 lbs
3500 lbs
-4° to 176° F
GEIDKBBB
5 mm
22 mm
28 mm
Yes
46 lbs
55 lbs
-4° to 176° F
GEIDKBDC
5 mm
22 mm
22 mm
Yes
46 lbs
55 lbs
-4° to 176° F
GEIDKBBC
8 mm
25 mm
32 mm
Yes
55 lbs
90 lbs
-4° to 176° F
GEIDKBBD
8 mm
46 mm
32 mm
Yes
90 lbs
180 lbs
-4° to 176° F
GEIDKBDD
8 mm
25 mm
25 mm
Yes
55 lbs
90 lbs
-4° to 176° F
GEIDKBDE
8 mm
46 mm
25 mm
Yes
90 lbs
180 lbs
-4° to 176° F
GEIDKBBE
12 mm
32 mm
42 mm
Yes
110 lbs
175 lbs
-4° to 176° F
GEIDKBBF
12 mm
61 mm
42 mm
Yes
180 lbs
350 lbs
-4° to 176° F
GEIDKBDF
12 mm
32 mm
32 mm
Yes
110 lbs
175 lbs
-4° to 176° F
GEIDKBDG
12 mm
61 mm
32 mm
Yes
180 lbs
350 lbs
-4° to 176° F
GEIDKBBG
16 mm
36 mm
45 mm
Yes
125 lbs
200 lbs
-4° to 176° F
GEIDKBBH
16 mm
68 mm
46 mm
Yes
400 lbs
400 lbs
-4° to 176° F
GEIDKBDH
16 mm
36 mm
35 mm
Yes
125 lbs
200 lbs
-4° to 176° F
GEIDKBDI
16 mm
68 mm
35 mm
Yes
400 lbs
400 lbs
-4° to 176° F
GEIDKBBI
20 mm
45 mm
54 mm
Yes
190 lbs
300 lbs
-4° to 176° F
GEIDKBBJ
20 mm
80 mm
54 mm
Yes
610 lbs
610 lbs
-4° to 176° F
GEIDKBDJ
20 mm
45 mm
42 mm
Yes
190 lbs
300 lbs
-4° to 176° F
GEIDKBEB
20 mm
80 mm
42 mm
Yes
610 lbs
610 lbs
-4° to 176° F
GEIDKBCB
25 mm
58 mm
62 mm
Yes
220 lbs
350 lbs
-4° to 176° F
GEIDKBCC
25 mm
112 mm
62 mm
Yes
350 lbs
700 lbs
-4° to 176° F
GEIDKBEC
25 mm
58 mm
50 mm
Yes
220 lbs
350 lbs
-4° to 176° F
GEIDKBED
25 mm
112 mm
50 mm
Yes
350 lbs
700 lbs
-4° to 176° F
GEIDKBCD
30 mm
68 mm
76 mm
Yes
350 lbs
610 lbs
-4° to 176° F
GEIDKBEE
30 mm
68 mm
60 mm
Yes
350 lbs
610 lbs
-4° to 176° F
GEIDKBCF
40 mm
80 mm
98 mm
Yes
480 lbs
900 lbs
-4° to 176° F
GEIDKBEG
40 mm
80 mm
75 mm
Yes
480 lbs
900 lbs
-4° to 176° F
GEIDKBCI
50 mm
192 mm
112 mm
Yes
1350 lbs
3550 lbs
-4° to 176° F
GEIDKBEI
50 mm
100 mm
88 mm
Yes
850 lbs
1750 lbs
-4° to 176° F
GEIDKBDB
60 mm
209 mm
134 mm
Yes
1650 lbs
4450 lbs
-4° to 176° F
GEIDKBFB
60 mm
125 mm
106 mm
Yes
1050 lbs
2200 lbs
-4° to 176° F
