Four-Point Contact Angular Contact Ball Bearings (General)
127 Products

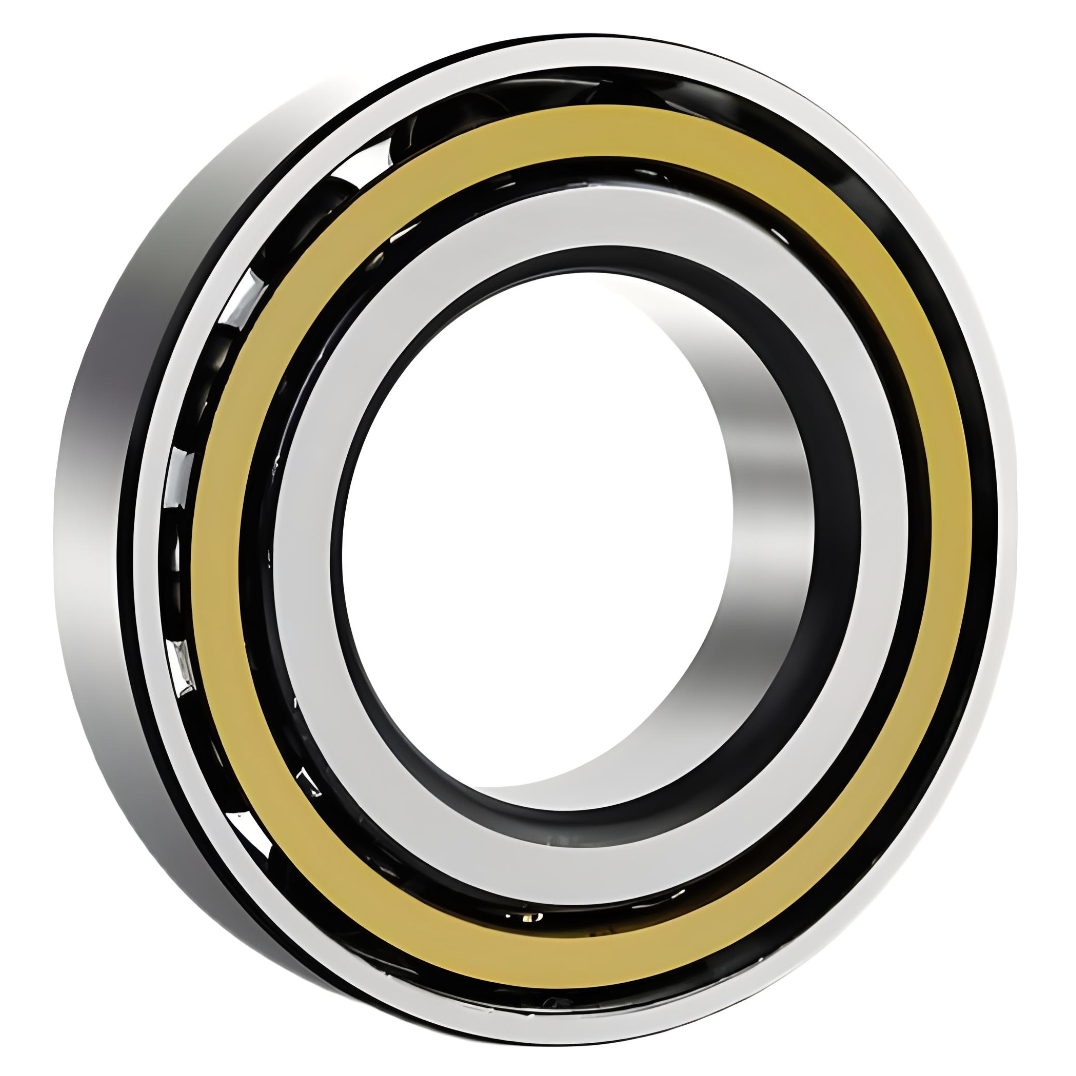

Four-Point Contact Angular Contact Ball Bearings (General)
Designed to support axial loads in both directions. . Limited radial load while axial load is given.
Part Number
Ring
Material
Material
For Load
Direction
Direction
Bore Dia
Outer Dia
Width
Seal Type
Internal
Design
Design
Temperature
Range
Range
Dynamic Radial
Load
Load
Cage
Material
Material
Ball
Material
Material
Static Radial
Load
Load
Max Speed
(X1000 rpm)
(X1000 rpm)
QJ 202 N2MA
52100 Chrome Steel
Combined Radial and Thrust
15 mm
35 mm
11 mm
Open
High Speed
-30° to 110 °C
12.7 kN
Brass Cage
52100 Chrome Steel
8.3 kN
36
QJ 203 N2MA
52100 Chrome Steel
Combined Radial and Thrust
17 mm
40 mm
12 mm
Open
High Speed
-30° to 110 °C
17 kN
Brass Cage
52100 Chrome Steel
11.4 kN
30
QJ 303 N2MA
52100 Chrome Steel
Combined Radial and Thrust
17 mm
47 mm
14 mm
Open
High Speed
-30° to 110 °C
23.4 kN
Brass Cage
52100 Chrome Steel
15 kN
28
QJ 304 MA
52100 Chrome Steel
Combined Radial and Thrust
20 mm
52 mm
15 mm
Open
High Speed
-30° to 110 °C
32 kN
Brass Cage
52100 Chrome Steel
21.6 kN
24
QJ 304 N2MA
52100 Chrome Steel
Combined Radial and Thrust
20 mm
52 mm
15 mm
Open
High Speed
-30° to 110 °C
32 kN
Brass Cage
52100 Chrome Steel
21.6 kN
24
QJ 304 N2PHAS
52100 Chrome Steel
Combined Radial and Thrust
20 mm
52 mm
15 mm
Open
High Speed
-30° to 110 °C
32 kN
PEEK Cage
52100 Chrome Steel
21.6 kN
24
QJ 205 MA
52100 Chrome Steel
Combined Radial and Thrust
25 mm
52 mm
15 mm
Open
High Speed
-30° to 110 °C
27 kN
Brass Cage
52100 Chrome Steel
21.2 kN
22
QJ 305 MA
52100 Chrome Steel
Combined Radial and Thrust
25 mm
62 mm
17 mm
Open
High Speed
-30° to 110 °C
42.5 kN
Brass Cage
52100 Chrome Steel
30 kN
20
QJ 305 N2MA
52100 Chrome Steel
Combined Radial and Thrust
25 mm
62 mm
17 mm
Open
High Speed
-30° to 110 °C
42.5 kN
Brass Cage
52100 Chrome Steel
30 kN
20
QJ 206 MA
52100 Chrome Steel
Combined Radial and Thrust
30 mm
62 mm
16 mm
Open
High Speed
-30° to 110 °C
37.5 kN
Brass Cage
52100 Chrome Steel
30.5 kN
19
QJ 206 N2MA
52100 Chrome Steel
Combined Radial and Thrust
30 mm
62 mm
16 mm
Open
High Speed
-30° to 110 °C
37.5 kN
Brass Cage
52100 Chrome Steel
30.5 kN
19
QJ 306 MA
52100 Chrome Steel
Combined Radial and Thrust
30 mm
72 mm
19 mm
Open
High Speed
-30° to 110 °C
53 kN
Brass Cage
52100 Chrome Steel
41.5 kN
17
QJ 306 N2MA
52100 Chrome Steel
Combined Radial and Thrust
30 mm
72 mm
19 mm
Open
High Speed
-30° to 110 °C
53 kN
Brass Cage
52100 Chrome Steel
41.5 kN
17
QJ 306 N2PHAS
52100 Chrome Steel
Combined Radial and Thrust
30 mm
72 mm
19 mm
Open
High Speed
-30° to 110 °C
53 kN
PEEK Cage
52100 Chrome Steel
41.5 kN
17
QJ 207 N2MA
52100 Chrome Steel
Combined Radial and Thrust
35 mm
72 mm
17 mm
Open
High Speed
-30° to 110 °C
49 kN
Brass Cage
52100 Chrome Steel
41.5 kN
17
QJ 307 MA
52100 Chrome Steel
Combined Radial and Thrust
35 mm
80 mm
21 mm
Open
High Speed
-30° to 110 °C
64 kN
Brass Cage
52100 Chrome Steel
51 kN
15
QJ 307 N2MA
52100 Chrome Steel
Combined Radial and Thrust
35 mm
80 mm
21 mm
Open
High Speed
-30° to 110 °C
64 kN
Brass Cage
52100 Chrome Steel
51 kN
15
QJ 307 N2PHAS
52100 Chrome Steel
Combined Radial and Thrust
35 mm
80 mm
21 mm
Open
High Speed
-30° to 110 °C
64 kN
PEEK Cage
52100 Chrome Steel
51 kN
15
QJ 208 MA
52100 Chrome Steel
Combined Radial and Thrust
40 mm
80 mm
18 mm
Open
High Speed
-30° to 110 °C
56 kN
Brass Cage
52100 Chrome Steel
49 kN
15
QJ 208 N2MA
52100 Chrome Steel
Combined Radial and Thrust
40 mm
80 mm
18 mm
Open
High Speed
-30° to 110 °C
56 kN
Brass Cage
52100 Chrome Steel
49 kN
15
QJ 208 PHAS
52100 Chrome Steel
Combined Radial and Thrust
40 mm
80 mm
18 mm
Open
High Speed
-30° to 110 °C
56 kN
PEEK Cage
52100 Chrome Steel
49 kN
15
QJ 308 MA
52100 Chrome Steel
Combined Radial and Thrust
40 mm
90 mm
23 mm
Open
High Speed
-30° to 110 °C
78 kN
Brass Cage
52100 Chrome Steel
64 kN
14
QJ 308 N2PHAS
52100 Chrome Steel
Combined Radial and Thrust
40 mm
90 mm
23 mm
Open
High Speed
-30° to 110 °C
78 kN
PEEK Cage
52100 Chrome Steel
64 kN
14
QJ 209 MA
52100 Chrome Steel
Combined Radial and Thrust
45 mm
85 mm
19 mm
Open
High Speed
-30° to 110 °C
63 kN
Brass Cage
52100 Chrome Steel
56 kN
14
QJ 309 MA
52100 Chrome Steel
Combined Radial and Thrust
45 mm
100 mm
25 mm
Open
High Speed
-30° to 110 °C
100 kN
Brass Cage
52100 Chrome Steel
83 kN
12
QJ 309 N2MA
52100 Chrome Steel
Combined Radial and Thrust
45 mm
100 mm
25 mm
Open
High Speed
-30° to 110 °C
100 kN
Brass Cage
52100 Chrome Steel
83 kN
12
QJ 309 N2PHAS
52100 Chrome Steel
Combined Radial and Thrust
45 mm
100 mm
25 mm
Open
High Speed
-30° to 110 °C
100 kN
PEEK Cage
52100 Chrome Steel
83 kN
12
QJ 309 PHAS
52100 Chrome Steel
Combined Radial and Thrust
45 mm
100 mm
25 mm
Open
High Speed
-30° to 110 °C
100 kN
PEEK Cage
52100 Chrome Steel
83 kN
12
QJ 210 MA
52100 Chrome Steel
Combined Radial and Thrust
50 mm
90 mm
20 mm
Open
High Speed
-30° to 110 °C
65.5 kN
Brass Cage
52100 Chrome Steel
61 kN
13
QJ 310 MA
52100 Chrome Steel
Combined Radial and Thrust
50 mm
110 mm
27 mm
Open
High Speed
-30° to 110 °C
118 kN
Brass Cage
52100 Chrome Steel
100 kN
11
QJ 310 PHAS
52100 Chrome Steel
Combined Radial and Thrust
50 mm
110 mm
27 mm
Open
High Speed
-30° to 110 °C
118 kN
PEEK Cage
52100 Chrome Steel
100 kN
11
QJ 211 MA
52100 Chrome Steel
Combined Radial and Thrust
55 mm
100 mm
21 mm
Open
High Speed
-30° to 110 °C
85 kN
Brass Cage
52100 Chrome Steel
83 kN
11
QJ 311 MA
52100 Chrome Steel
Combined Radial and Thrust
55 mm
120 mm
29 mm
Open
High Speed
-30° to 110 °C
137 kN
Brass Cage
52100 Chrome Steel
118 kN
10
QJ 311 N2MA
52100 Chrome Steel
Combined Radial and Thrust
55 mm
120 mm
29 mm
Open
High Speed
-30° to 110 °C
137 kN
Brass Cage
52100 Chrome Steel
118 kN
10
QJ 212 MA
52100 Chrome Steel
Combined Radial and Thrust
60 mm
110 mm
22 mm
Open
High Speed
-30° to 110 °C
96.5 kN
Brass Cage
52100 Chrome Steel
93 kN
10
QJ 212 N2MA
52100 Chrome Steel
Combined Radial and Thrust
60 mm
110 mm
22 mm
Open
High Speed
-30° to 110 °C
96.5 kN
Brass Cage
52100 Chrome Steel
93 kN
10
QJ 212 N2PHAS
52100 Chrome Steel
Combined Radial and Thrust
60 mm
110 mm
22 mm
Open
High Speed
-30° to 110 °C
96.5 kN
PEEK Cage
52100 Chrome Steel
93 kN
10
QJ 312 MA
52100 Chrome Steel
Combined Radial and Thrust
60 mm
130 mm
31 mm
Open
High Speed
-30° to 110 °C
156 kN
Brass Cage
52100 Chrome Steel
137 kN
9
QJ 312 PHAS
52100 Chrome Steel
Combined Radial and Thrust
60 mm
130 mm
31 mm
Open
High Speed
-30° to 110 °C
156 kN
PEEK Cage
52100 Chrome Steel
137 kN
9
QJ 213 MA
52100 Chrome Steel
Combined Radial and Thrust
65 mm
120 mm
23 mm
Open
High Speed
-30° to 110 °C
110 kN
Brass Cage
52100 Chrome Steel
112 kN
9.5
QJ 213 N2MA
52100 Chrome Steel
Combined Radial and Thrust
65 mm
120 mm
23 mm
Open
High Speed
-30° to 110 °C
110 kN
Brass Cage
52100 Chrome Steel
112 kN
9.5
QJ 213 N2PHAS
52100 Chrome Steel
Combined Radial and Thrust
65 mm
120 mm
23 mm
Open
High Speed
-30° to 110 °C
110 kN
PEEK Cage
52100 Chrome Steel
112 kN
9.5
QJ 313 MA
52100 Chrome Steel
Combined Radial and Thrust
65 mm
140 mm
33 mm
Open
High Speed
-30° to 110 °C
176 kN
Brass Cage
52100 Chrome Steel
156 kN
8.5
QJ 313 N2PHAS
52100 Chrome Steel
Combined Radial and Thrust
65 mm
140 mm
33 mm
Open
High Speed
-30° to 110 °C
176 kN
PEEK Cage
52100 Chrome Steel
156 kN
8.5
QJ 214 N2MA
52100 Chrome Steel
Combined Radial and Thrust
70 mm
125 mm
24 mm
Open
High Speed
-30° to 110 °C
120 kN
Brass Cage
52100 Chrome Steel
122 kN
9
QJ 214 N2PHAS
52100 Chrome Steel
Combined Radial and Thrust
70 mm
125 mm
24 mm
Open
High Speed
-30° to 110 °C
120 kN
PEEK Cage
52100 Chrome Steel
122 kN
9
QJ 314 MA
52100 Chrome Steel
Combined Radial and Thrust
70 mm
150 mm
35 mm
Open
High Speed
-30° to 110 °C
200 kN
Brass Cage
52100 Chrome Steel
180 kN
8
QJ 314 N2MA
52100 Chrome Steel
Combined Radial and Thrust
70 mm
150 mm
35 mm
Open
High Speed
-30° to 110 °C
200 kN
Brass Cage
52100 Chrome Steel
180 kN
8
QJ 314 N2PHAS
52100 Chrome Steel
Combined Radial and Thrust
70 mm
150 mm
35 mm
Open
High Speed
-30° to 110 °C
200 kN
PEEK Cage
52100 Chrome Steel
180 kN
8
QJ 215 MA
52100 Chrome Steel
Combined Radial and Thrust
75 mm
130 mm
25 mm
Open
High Speed
-30° to 110 °C
125 kN
Brass Cage
52100 Chrome Steel
132 kN
8.5
QJ 215 N2MA
52100 Chrome Steel
Combined Radial and Thrust
75 mm
130 mm
25 mm
Open
High Speed
-30° to 110 °C
125 kN
Brass Cage
52100 Chrome Steel
132 kN
8.5
QJ 215 N2PHAS
52100 Chrome Steel
Combined Radial and Thrust
75 mm
130 mm
25 mm
Open
High Speed
-30° to 110 °C
125 kN
PEEK Cage
52100 Chrome Steel
132 kN
8.5
QJ 315 N2MA
52100 Chrome Steel
Combined Radial and Thrust
75 mm
160 mm
37 mm
Open
High Speed
-30° to 110 °C
216 kN
Brass Cage
52100 Chrome Steel
200 kN
7.5
QJ 315 N2PHAS
52100 Chrome Steel
Combined Radial and Thrust
75 mm
160 mm
37 mm
Open
High Speed
-30° to 110 °C
216 kN
PEEK Cage
52100 Chrome Steel
200 kN
7.5
QJ 216 MA
52100 Chrome Steel
Combined Radial and Thrust
80 mm
140 mm
26 mm
Open
High Speed
-30° to 110 °C
146 kN
Brass Cage
52100 Chrome Steel
156 kN
8
QJ 216 N2MA
52100 Chrome Steel
Combined Radial and Thrust
80 mm
140 mm
26 mm
Open
High Speed
-30° to 110 °C
146 kN
Brass Cage
52100 Chrome Steel
156 kN
8
QJ 316 N2MA
52100 Chrome Steel
Combined Radial and Thrust
80 mm
170 mm
39 mm
Open
High Speed
-30° to 110 °C
232 kN
Brass Cage
52100 Chrome Steel
228 kN
7
QJ 316 N2PHAS
52100 Chrome Steel
Combined Radial and Thrust
80 mm
170 mm
39 mm
Open
High Speed
-30° to 110 °C
232 kN
PEEK Cage
52100 Chrome Steel
228 kN
7
QJ 1017 N2MA/C4
52100 Chrome Steel
Combined Radial and Thrust
85 mm
130 mm
22 mm
Open
High Speed
-30° to 110 °C
99.5 kN
Brass Cage
52100 Chrome Steel
114 kN
8
QJ 217 MA
52100 Chrome Steel
Combined Radial and Thrust
85 mm
150 mm
28 mm
Open
High Speed
-30° to 110 °C
156 kN
Brass Cage
52100 Chrome Steel
173 kN
7.5
QJ 217 N2MA
52100 Chrome Steel
Combined Radial and Thrust
85 mm
150 mm
28 mm
Open
High Speed
-30° to 110 °C
156 kN
Brass Cage
52100 Chrome Steel
173 kN
7.5
QJ 317 N2MA
52100 Chrome Steel
Combined Radial and Thrust
85 mm
180 mm
41 mm
Open
High Speed
-30° to 110 °C
250 kN
Brass Cage
52100 Chrome Steel
255 kN
6.7
QJ 218 N2MA
52100 Chrome Steel
Combined Radial and Thrust
90 mm
160 mm
30 mm
Open
High Speed
-30° to 110 °C
186 kN
Brass Cage
52100 Chrome Steel
200 kN
7
QJ 318 N2MA
52100 Chrome Steel
Combined Radial and Thrust
90 mm
190 mm
43 mm
Open
High Speed
-30° to 110 °C
285 kN
Brass Cage
52100 Chrome Steel
305 kN
6.3
QJ 318 N2PHAS
52100 Chrome Steel
Combined Radial and Thrust
90 mm
190 mm
43 mm
Open
High Speed
-30° to 110 °C
285 kN
PEEK Cage
52100 Chrome Steel
305 kN
6.3
QJ 219 N2MA
52100 Chrome Steel
Combined Radial and Thrust
95 mm
170 mm
32 mm
Open
High Speed
-30° to 110 °C
212 kN
Brass Cage
52100 Chrome Steel
232 kN
6.7
QJ 219 N2PHAS
52100 Chrome Steel
Combined Radial and Thrust
95 mm
170 mm
32 mm
Open
High Speed
-30° to 110 °C
212 kN
PEEK Cage
52100 Chrome Steel
232 kN
6.7
QJ 319 N2MA
52100 Chrome Steel
Combined Radial and Thrust
95 mm
200 mm
45 mm
Open
High Speed
-30° to 110 °C
305 kN
Brass Cage
52100 Chrome Steel
340 kN
6
QJ 319 N2PHAS
52100 Chrome Steel
Combined Radial and Thrust
95 mm
200 mm
45 mm
Open
High Speed
-30° to 110 °C
305 kN
PEEK Cage
52100 Chrome Steel
340 kN
6
QJ 220 N2MA
52100 Chrome Steel
Combined Radial and Thrust
100 mm
180 mm
34 mm
Open
High Speed
-30° to 110 °C
236 kN
Brass Cage
52100 Chrome Steel
265 kN
6.3
QJ 320 N2MA
52100 Chrome Steel
Combined Radial and Thrust
100 mm
215 mm
47 mm
Open
High Speed
-30° to 110 °C
345 kN
Brass Cage
52100 Chrome Steel
400 kN
5.6
QJ 1021 N2MA/C4
52100 Chrome Steel
Combined Radial and Thrust
105 mm
160 mm
26 mm
Open
High Speed
-30° to 110 °C
135 kN
Brass Cage
52100 Chrome Steel
170 kN
6.7
QJ 1022 N2MA/C4
52100 Chrome Steel
Combined Radial and Thrust
110 mm
170 mm
28 mm
Open
High Speed
-30° to 110 °C
153 kN
Brass Cage
52100 Chrome Steel
193 kN
6.3
QJ 222 N2MA
52100 Chrome Steel
Combined Radial and Thrust
110 mm
200 mm
38 mm
Open
High Speed
-30° to 110 °C
280 kN
Brass Cage
52100 Chrome Steel
325 kN
5.6
QJ 322 N2MA
52100 Chrome Steel
Combined Radial and Thrust
110 mm
240 mm
50 mm
Open
High Speed
-30° to 110 °C
390 kN
Brass Cage
52100 Chrome Steel
480 kN
4.8
QJ 224 N2MA
52100 Chrome Steel
Combined Radial and Thrust
120 mm
215 mm
40 mm
Open
High Speed
-30° to 110 °C
300 kN
Brass Cage
52100 Chrome Steel
365 kN
5
QJ 324 N2MA
52100 Chrome Steel
Combined Radial and Thrust
120 mm
260 mm
55 mm
Open
High Speed
-30° to 110 °C
415 kN
Brass Cage
52100 Chrome Steel
530 kN
4.5
QJ 226 N2MA
52100 Chrome Steel
Combined Radial and Thrust
130 mm
230 mm
40 mm
Open
High Speed
-30° to 110 °C
310 kN
Brass Cage
52100 Chrome Steel
400 kN
4.8
QJ 326 N2MA
52100 Chrome Steel
Combined Radial and Thrust
130 mm
280 mm
58 mm
Open
High Speed
-30° to 110 °C
455 kN
Brass Cage
52100 Chrome Steel
610 kN
4
QJ 228 N2MA
52100 Chrome Steel
Combined Radial and Thrust
140 mm
250 mm
42 mm
Open
High Speed
-30° to 110 °C
345 kN
Brass Cage
52100 Chrome Steel
475 kN
4.3
QJ 328 N2MA
52100 Chrome Steel
Combined Radial and Thrust
140 mm
300 mm
62 mm
Open
High Speed
-30° to 110 °C
500 kN
Brass Cage
52100 Chrome Steel
695 kN
3.8
QJ 1030 N2MA
52100 Chrome Steel
Combined Radial and Thrust
150 mm
225 mm
35 mm
Open
High Speed
-30° to 110 °C
242 kN
Brass Cage
52100 Chrome Steel
335 kN
4.5
QJ 230 N2MA
52100 Chrome Steel
Combined Radial and Thrust
150 mm
270 mm
45 mm
Open
High Speed
-30° to 110 °C
400 kN
Brass Cage
52100 Chrome Steel
570 kN
4
QJ 330 N2MA
52100 Chrome Steel
Combined Radial and Thrust
150 mm
320 mm
65 mm
Open
High Speed
-30° to 110 °C
530 kN
Brass Cage
52100 Chrome Steel
765 kN
3.6
QJ 1032 N2MA
52100 Chrome Steel
Combined Radial and Thrust
160 mm
240 mm
38 mm
Open
High Speed
-30° to 110 °C
270 kN
Brass Cage
52100 Chrome Steel
380 kN
4.3
QJ 232 N2MA
52100 Chrome Steel
Combined Radial and Thrust
160 mm
290 mm
48 mm
Open
High Speed
-30° to 110 °C
450 kN
Brass Cage
52100 Chrome Steel
670 kN
3.8
QJ 332 N2MA
52100 Chrome Steel
Combined Radial and Thrust
160 mm
340 mm
68 mm
Open
High Speed
-30° to 110 °C
570 kN
Brass Cage
52100 Chrome Steel
880 kN
3.4
QJ 234 N2MA
52100 Chrome Steel
Combined Radial and Thrust
170 mm
310 mm
52 mm
Open
High Speed
-30° to 110 °C
455 kN
Brass Cage
52100 Chrome Steel
720 kN
3.4
QJ 334 N2MA
52100 Chrome Steel
Combined Radial and Thrust
170 mm
360 mm
72 mm
Open
High Speed
-30° to 110 °C
655 kN
Brass Cage
52100 Chrome Steel
1040 kN
3.2
QJ 236 N2MA
52100 Chrome Steel
Combined Radial and Thrust
180 mm
320 mm
52 mm
Open
High Speed
-30° to 110 °C
475 kN
Brass Cage
52100 Chrome Steel
765 kN
3.4
QJ 336 N2MA
52100 Chrome Steel
Combined Radial and Thrust
180 mm
380 mm
75 mm
Open
High Speed
-30° to 110 °C
680 kN
Brass Cage
52100 Chrome Steel
1100 kN
3
QJ 1038 N2MA
52100 Chrome Steel
Combined Radial and Thrust
190 mm
290 mm
46 mm
Open
High Speed
-30° to 110 °C
364 kN
Brass Cage
52100 Chrome Steel
560 kN
3.4
QJ 238 N2MA
52100 Chrome Steel
Combined Radial and Thrust
190 mm
340 mm
55 mm
Open
High Speed
-30° to 110 °C
510 kN
Brass Cage
52100 Chrome Steel
850 kN
3.2
QJ 338 N2MA
52100 Chrome Steel
Combined Radial and Thrust
190 mm
400 mm
78 mm
Open
High Speed
-30° to 110 °C
702 kN
Brass Cage
52100 Chrome Steel
1160 kN
2.8
QJ 1040 N2MA
52100 Chrome Steel
Combined Radial and Thrust
200 mm
310 mm
51 mm
Open
High Speed
-30° to 110 °C
390 kN
Brass Cage
52100 Chrome Steel
620 kN
3.2
QJ 1240 N2MA
52100 Chrome Steel
Combined Radial and Thrust
200 mm
360 mm
70 mm
Open
High Speed
-30° to 110 °C
520 kN
Brass Cage
52100 Chrome Steel
865 kN
3
QJ 240 N2MA
52100 Chrome Steel
Combined Radial and Thrust
200 mm
360 mm
58 mm
Open
High Speed
-30° to 110 °C
540 kN
Brass Cage
52100 Chrome Steel
915 kN
3
QJ 1244 N2MA
52100 Chrome Steel
Combined Radial and Thrust
220 mm
400 mm
78 mm
Open
High Speed
-30° to 110 °C
592 kN
Brass Cage
52100 Chrome Steel
1020 kN
2.6
QJ 344 N2MA
52100 Chrome Steel
Combined Radial and Thrust
220 mm
460 mm
88 mm
Open
High Speed
-30° to 110 °C
780 kN
Brass Cage
52100 Chrome Steel
1400 kN
2.4
QJ 1248 MA/344524
52100 Chrome Steel
Combined Radial and Thrust
240 mm
440 mm
85 mm
Open
High Speed
-30° to 110 °C
663 kN
Brass Cage
52100 Chrome Steel
1220 kN
2.4
